Valtra C130

The Valtra C130 is a tractor produced by Valtra. It is equipped with a 268.4 ci 4.4 L engine. The listed engine power is Diesel (listed): 135 hp / 100.7 kW; Diesel (listed): 4.1 hp / 3.1 kW. Transmission: 36 forward and reverse. Operating weight: 10,690 lbs 4848 kg.

Engine Power
Diesel (listed): 135 hp / 100.7 kW; Diesel (listed): 4.1 hp / 3.1 kW
Fuel & Capacities
47.6 gal 180.2 L
Transmission
36 forward and reverse
Operating Weight
10,690 lbs 4848 kg

Overview

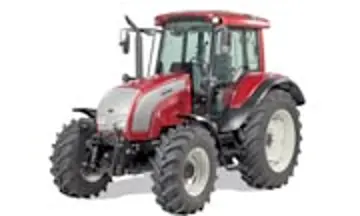

Valtra C130 tractor photo
2004 - 2006 C SeriesRow-Crop tractor C Series Row-Crop tractor
Production
Manufacturer
Valtra
Row-Crop tractor
Valtra C130 Engine
SisuDiesel 4.4L 4-cyl diesel
Fuel tank
47.6 gal 180.2 L
Engine details ...
Valtra C130 Transmission
36-speed power shift
Transmission details ...
Valtra C130 Power
Engine
135 hp 100.7 kW
Mechanical
Four-wheel drive
Differential lock
automatic
Power steering
Wet disc brakes
Cab standard with optional air-conditioning.
Hydraulics
Type
load sensing
Pressure
2843 psi 196.0 bar
Valves
2 to 4
Total flow
24 gpm 90.8 lpm
Tractor hitch
Rear Type
3
Rear lift (at ends)
15,870 lbs 7198 kg
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540/1000
540/540E
1000/540E
1000
Engine RPM
540@1874
540E@1539
1000@2000
Dimensions & Tires
Wheelbase
95.1 inches 241 cm
Weight
10,690 lbs 4848 kg
Front tire
14.9R28
Rear tire
18.4R38
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Charging amps
120
Battery volts
12
Battery AH
174
References

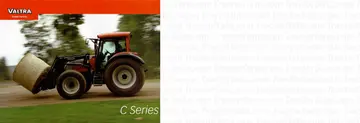

C130 references literature
C Series published by Valtra

Engine

Engine Detail — 268.4 ci / 4.4 L Diesel

Manufacturer
SisuDiesel 44EWA
Configuration
intercooled turbocharged diesel, 4-cylinder, liquid-cooled
Displacement
268.4 ci 4.4 L
Bore/Stroke
4.252x4.724 inches 108 x 120 mm
Power
135 hp 100.7 kW
Rated RPM
2200
Torque
376.2 lb-ft 510.1 Nm
Torque RPM
1400
Starter volts
12
Starter power
4.1 hp 3.1 kW
Oil change
500 h

Transmission

Transmission — 36 forward and reverse power shift

Type
power shift
Gears
36 forward and reverse
Clutch
wet disc

Dimensions

Valtra C130 Tires
Ag front
14.9R28
Ag rear
18.4R38
Dimensions
Wheelbase
95.1 inches 241 cm
Length
174.2 inches 442 cm
Width
87.4 inches 221 cm
Height (cab)
112 inches 284 cm
Weight
10,690 lbs 4848 kg
Ground clearance
18.5 inches 46 cm

Photos

Valtra C130 tractor photo

Valtra C130 tractor photo

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Valtra C130.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Valtra C130 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Valtra C130.

Converted Equivalents:

Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
