Valtra M130
The Valtra M130 is a tractor produced by Valtra. It is equipped with a 268.4 ci 4.4 L engine. The listed engine power is Diesel (listed): 135 hp / 100.7 kW. Transmission: HiTech. Operating weight: 11312 lbs 5131 kg.
Engine Power
Diesel (listed): 135 hp / 100.7 kW
Fuel & Capacities
42.3 gal
160.1 L
Transmission
HiTech
Operating Weight
11312 lbs
5131 kg
Overview
 | 2003 - 2006
M SeriesRow-Crop tractor
M Series
Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | Valtra |
Row-Crop tractor | |
Valtra M130 Engine | |
|---|---|
SisuDiesel 4.4L 4-cyl diesel | |
Fuel tank | 42.3 gal
160.1 L |
Engine details ...  | |
Valtra M130 Transmission | |
|---|---|
36-speed partial power shift | |
Transmission details ...  |
Valtra M130 Power | |
|---|---|
Engine | 135 hp
100.7 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Wet disc brakes | |
Cab standard with air-conditioning. |
Hydraulics | |
|---|---|
Type | load sensing |
Pressure | 2843 psi
196.0 bar |
Total flow | 24.0 gpm
90.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | III/II |
Rear lift | 15,876 lbs
7201 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Engine RPM | 540@1874 |
1000@2000 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 100.8 inches
256 cm |
Weight | 11312 lbs
5131 kg |
Front tire | 16.9R28 |
Rear tire | 20.8R38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Battery volts | 12 |
Battery AH | 160 |
References | |
|---|---|
 | |
M Series published in 2004, by Valtra |
Engine
Engine Detail — 268.4 ci / 4.4 L Diesel
Manufacturer | SisuDiesel 44EWA |
Configuration | intercooled turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 268.4 ci
4.4 L |
Bore/Stroke | 4.252x4.724 inches
108 x 120 mm |
Power | 135 hp
100.7 kW |
Rated RPM | 2200 |
Torque | 376.2 lb-ft
510.1 Nm |
Torque RPM | 1400 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — HiTech
Transmission | HiTech |
Type | partial power shift |
Gears | 36 forward and reverse |
Clutch | wet disc |
Twelve gears with three-speed power shift. | |
Dimensions
Valtra M130 Tires | |
|---|---|
Standard tires (ag) | Front: 16.9R28. Rear: 20.8R38 |
Dimensions | |
|---|---|
Wheelbase | 100.8 inches
256 cm |
Length | 192.9 inches
489 cm |
Width | 92.1 inches
233 cm |
Height | 116.9 inches
296 cm |
Weight | 11312 lbs
5131 kg |
Clearance (front axle) | 20.9 inches
53 cm |
Clearance (rear axle) | 21.1 inches
53 cm |
Photos

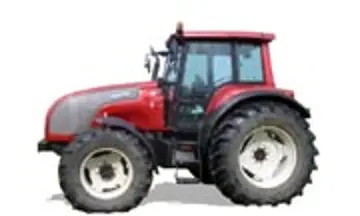

Valtra M130 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Valtra M130 based on its 135 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙 | Commercial / Field Scale | Wide commercial field leveling; requires hydraulic remotes. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Valtra M130.
Estimated Continuous Field Runtime: 6 hrs
Approximately 6 hours of continuous field operation at ~75% rated power on a full tank (42.3 gal / 160.1 L).
Estimated 75% Load Fuel Burn~7 gal/hr (26.6 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Valtra M130 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Valtra M130.
Converted Equivalents:
Horsepower (HP)135 hp
Kilowatts (kW)100.7 kW
Metric Horsepower (PS / CV)136.9 PS
Direct Competitor Comparison
Compare Valtra M130 against same-era industry alternatives in the same horsepower class.
Current Model
Valtra
Valtra M130
Engine Power:Diesel (listed): 135 hp / 100.7 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 1246
Engine Power:122
Production Years:1972 - 1980
