Valtra N135
The Valtra N135 is a tractor produced by Valtra. It is equipped with a 299.8 ci 4.9 L engine. The listed engine power is Diesel (listed): 132.8 hp / 99.0 kW. Transmission: Hi Tech. Operating weight: 14330 lbs 6500 kg.
Engine Power
Diesel (listed): 132.8 hp / 99.0 kW
Fuel & Capacities
62.1 gal
235.0 L
Transmission
Hi Tech
Operating Weight
14330 lbs
6500 kg
Overview
 | 2021 -
N SeriesRow-Crop tractor |
|---|---|
2021 - | |
N Series | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | Valtra (a part of AGCO) |
Row-Crop tractor | |

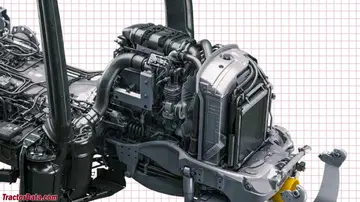

Valtra N135 Engine | |
|---|---|
AGCO Power 4.9L 4-cyl diesel | |
Fuel tank | 62.1 gal
235.0 L |
83.2 galOptOptional
314.9 L | |
42.3 gal (steel tank)
160.1 L | |
Exhaust fluid (DEF) | 11.9 gal
45.0 L |
Engine details ...  | |
Valtra N135 Power | |
|---|---|
Engine | 132.8 hp
99.0 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Wet disc brakes | |
Cab standard with air-conditioning. |
Hydraulics | |
|---|---|
Type | open center |
closed center OptOptional | |
Rear valves | 2 to 5 |
Pump flow | 19.3 gpm (open)
73.1 lpm |
23.8 gpm (open option)
90.1 lpm | |
30.4 gpm (closed)
115.1 lpm | |
42.3 gpm (closed option)
160.1 lpm | |
52.8 gpm (closed option)
199.8 lpm | |
Tractor hitch | |
|---|---|
Rear lift | 17085 lbs
7749 kg |
Front lift | 6744 lbs
3059 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Engine RPM | 540@1890 |
540E@1522 | |
1000@1897 | |
Front PTO | independent OptOptional |
Front PTO Type | 1000 |
Engine RPM | 1000@2000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 104.9 inches
266 cm |
Weight | 14330 lbs
6500 kg |
Front tire | 480/65R28 |
Rear tire | 600/65R38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Battery volts | 12 |
References | |
|---|---|
 | |
N Series published in 2021, by Valtra |
Engine
Engine Detail — 299.8 ci / 4.9 L Diesel
Manufacturer | AGCO Power 49 LFTN-05 |
Configuration | turbocharged intercooled diesel, 4-cylinder, liquid-cooled |
Displacement | 299.8 ci
4.9 L |
Bore/Stroke | 4.25x5.28 inches
108 x 134 mm |
Emissions | Stage 5 |
Power | 132.8 hp
99.0 kW |
Maximum Power | 143.5 hp
107.0 kW |
Rated RPM | 2200 |
Torque | 420.4 lb-ft
570.1 Nm |
Torque RPM | 1500 |
Starter | electric |
Starter volts | 12 |
Oil change | 600 h |
Valtra N135 Engine | |
|---|---|
 |
Transmission
Transmission options | |
|---|---|
20-speed five-speed power shift | |
continuously-variable transmission |
Transmission — Hi Tech
Transmission | Hi Tech |
Type | five-speed power shift |
Gears | 20 forward and reverse |
Transmission — infinite forward and reverse continuously-variable transmission
Type | continuously-variable transmission |
Gears | infinite forward and reverse |
Dimensions
Valtra N135 Tires | |
|---|---|
Standard tires (ag) | Front: 480/65R28. Rear: 600/65R38 |
Optional tires (ag) | Front: 380/85R28. Rear: 460/85R38 |
Front: 540/65R28. Rear: 650/65R38 | |
Dimensions | |
|---|---|
Wheelbase | 104.9 inches
266 cm |
Length | 203 inches
515 cm |
Width | 100.4 inches
255 cm |
Height (cab) | 116.5. inches
295 cm |
Operating weight | 14330 lbs
6500 kg |
Max weight | 24251 lbs
11000 kg |
Ground clearance | 19.7 inches
50 cm |
Photos
Valtra N135 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Valtra N135 based on its 132.8 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙 | Commercial / Field Scale | Wide commercial field leveling; requires hydraulic remotes. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Valtra N135.
Estimated Continuous Field Runtime: 9 hrs
Approximately 9 hours of continuous field operation at ~75% rated power on a full tank (62.1 gal / 235.1 L).
Estimated 75% Load Fuel Burn~6.9 gal/hr (26.1 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Valtra N135 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Valtra N135.
Converted Equivalents:
Horsepower (HP)132.8 hp
Kilowatts (kW)99 kW
Metric Horsepower (PS / CV)134.6 PS
