Ventrac 3200
The Ventrac 3200 is a tractor produced by Ventrac Lawn Tractors. The listed engine power is Engine 1 (listed): 23.6 hp / 17.6 kW. Transmission: hydrostatic. Operating weight: 1,050 lbs 476 kg.
Overview
 | 2006 - 2014 |
|---|
Production | |
|---|---|
Manufacturer | Ventrac |
Ventrac 3200 Engine | |
|---|---|
23.6HP Briggs & Stratton 3-cyl | |
Fuel tank | 5 gal
18.9 L |
Engine details ...  | |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | power |
Tractor hitch | |
|---|---|
Type | Ventrac Minute Mount |
Dimensions & Tires | |
|---|---|
Wheelbase | 38 inches
96 cm |
Weight | 1,050 lbs
476 kg |
Front tire | 18x10.50-10 |
Rear tire | 18x10.50-10 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 40 |
Battery CCA | 450 |
Battery volts | 12 |
Engine
Manufacturer | Briggs & Stratton Vanguard |
|---|---|
Configuration | 3-cylinder, liquid-cooled |
Power | 23.6 hp
17.6 kW |
Rated RPM | 3200 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — hydrostatic
Transmission | hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
Ventrac 3200 Tires | |
|---|---|
Ag front | 18x11x10 |
Ag rear | 18x11x10 |
Lawn/turf front | 18x10.50-10 |
Lawn/turf rear | 18x10.50-10 |
Dimensions | |
|---|---|
Wheelbase | 38 inches
96 cm |
Length | 72 inches
182 cm |
Width | 40.5 inches
102 cm |
Height | 47 inches
119 cm |
Weight | 1,050 lbs
476 kg |
Photos

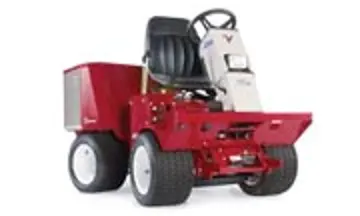

Ventrac 3200 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Ventrac Lawn Tractors Ventrac 3200 based on its 23.6 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Ventrac Lawn Tractors Ventrac 3200.
Estimated Continuous Field Runtime: 4.1 hrs
Approximately 4.1 hours of continuous field operation at ~75% rated power on a full tank (5 gal / 18.9 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Ventrac Lawn Tractors Ventrac 3200 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Ventrac Lawn Tractors Ventrac 3200.
Converted Equivalents:
Direct Competitor Comparison
Compare Ventrac 3200 against same-era industry alternatives in the same horsepower class.
Ventrac 3200
