Versatile 1080 Big Roy

The Versatile 1080 Big Roy is a tractor produced by Versatile. It is equipped with a 1150 ci 18.8 L engine. The listed engine power is Diesel (listed): 600 hp / 447.4 kW. Transmission: 6 forward and 1 reverse. Drive type: 8x8 8WD. Operating weight: 54450 to 57580 pounds.

Engine Power
Diesel (listed): 600 hp / 447.4 kW
Drive & Traction
8x8 8WD
Fuel & Capacities
550 gal 2081.8 L
Transmission
6 forward and 1 reverse
Operating Weight
57580 lbs 26118 kg

Overview

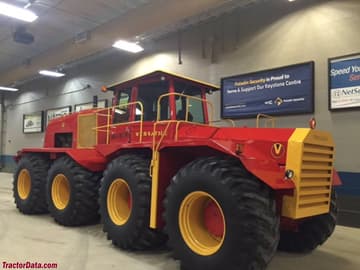

Versatile 1080 Big Roy tractor photo
1977 Experimental tractor
Production
Manufacturer
Versatile
Experimental tractor
Built in Winnipeg, Manitoba, Canada
Total built
1
The Versatile 1080 "Big Roy" was a prototype. The 26-ton tractor featured a four-axle 8x8 drive, and a 19-liter Cummins KTA 1150-600 diesel generating 600 horsepower. A camera system with in-cab monitors was used for the operator. The tractor is now at the Manitoba Agricultural Museum.
Versatile 1080 Engine
Cummins 18.8L 6-cyl diesel
Fuel tank
550 gal 2081.8 L
Engine details ...
Versatile 1080 Transmission
6-speed gear
Transmission details ...
Versatile 1080 Power
Engine
600 hp 447.4 kW
Mechanical
Drive
8x8 8WD
Cab standard.
Dimensions & Tires
Wheelbase
266.4 inches 676 cm
Weight
54450 to 57580 pounds
Front tire
30.5-32
Rear tire
30.5-32
Full dimensions and tires ...
Links
Big Roy: Information from the Manitoba Agricultural Museum
Electrical
Ground
negative
Batteries
2
Battery CCA
900
Battery volts
12
References
1080 Big Roy references literature
Big Roy published in 2016, by Versatile

Engine

Engine Detail — 1150 ci / 18.8 L Diesel

Manufacturer
Cummins KTA1150-600
Configuration
turbocharged diesel, 6-cylinder, liquid-cooled inline
Displacement
1150 ci 18.8 L
Bore/Stroke
6.25x6.25 inches 159 x 159 mm
Power
600 hp 447.4 kW
Rated RPM
2100
Starter volts
24
Coolant capacity
85 qts 80.4 L

Transmission

Transmission — 6 forward and 1 reverse gear

Type
gear
Gears
6 forward and 1 reverse
1080 Big Roy  gear speeds

Dimensions

Versatile 1080 Tires
Ag front
30.5-32
Ag rear
30.5-32
Dimensions
Wheelbase
266.4 inches 676 cm
Length
366 inches 929 cm
Height
132 inches 335 cm
Shipping weight
54450 lbs 24698 kg
Operating weight
57580 lbs 26118 kg

Photos

Versatile 1080 Big Roy

Versatile 1080 Big Roy

Recommended Implements & Sizing Guide

Engineering recommendations for Versatile 1080 Big Roy based on its 600 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁Commercial / Field ScaleHigh horsepower articulated/4WD field plowing.
Rotary Cutter / MowerMowing & Clearing
15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼Commercial / Field ScaleLarge commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep
90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机Commercial / Field ScaleDeep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage
24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙Commercial / Field ScaleBroad-acre grain tillage for high-drawbar tractors.
Hay BalerHay & Forage
Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)Commercial / Field ScaleHigh-capacity commercial forage harvesting (1000 RPM PTO).
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Versatile 1080 Big Roy.

Estimated Continuous Field Runtime: 17.6 hrs

Approximately 17.6 hours of continuous field operation at ~75% rated power on a full tank (550 gal / 2082 L).

Estimated 75% Load Fuel Burn~31.2 gal/hr (118.1 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Versatile 1080 Big Roy Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Versatile 1080 Big Roy.

Converted Equivalents:

Horsepower (HP)600 hp
Kilowatts (kW)447.4 kW
Metric Horsepower (PS / CV)608.3 PS
