Versatile 125

The Versatile 125 is a tractor produced by Versatile. It is equipped with a 391 ci 6.4 L engine. The listed engine power is Gasoline (listed): 165 hp / 123.0 kW. Transmission: Versatile. Operating weight: 12100 lbs 5488 kg.

Overview

	1967 - 1968 Four-wheel Drive (4WD) tractor

Production
Manufacturer	Versatile
Four-wheel Drive (4WD) tractor
Built in Winnipeg, Manitoba, Canada
Original price was $12,100 in 1968

Versatile 125 Engine
Ford 6.4L 8-cyl gasoline
Fuel tank	54 gal 204.4 L
Engine details ...

Versatile 125 Transmission
9-speed gear
Transmission details ...

Versatile 125 Power
Engine	165 hp 123.0 kW

Mechanical
Four-wheel drive
Final drives	planetary
Articulated power steering
Hydraulic drum brakes
Open operator station. Cab optional.

Hydraulics
Type	open center
Pressure	1750 psi 120.7 bar
Valves	3
Pump flow	12.5 gpm (early) 47.3 lpm
	16.5 gpm (late) 62.5 lpm

Tractor hitch
Rear Type	III/II
Rear lift (at 24"/610mm)	6000 lbs 2721 kg

Power Take-off (PTO)
Rear PTO	live
Rear PTO Type	1000
Engine RPM	1000@2700

Dimensions & Tires
Wheelbase	120 inches 304 cm
Weight	12100 lbs 5488 kg
Front tire	18.4-30
Rear tire	18.4-30
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	40
Battery AH	70

References

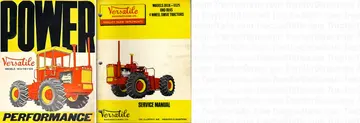

Models 145 - 118 - 125: Power Performance published by Versatile
Service Manual Models D118, G125 and D145 4 Wheel Drive Tractors published by Versatile

Engine

Engine Detail — 391 ci / 6.4 L Gasoline

Manufacturer	Ford C4PC
Fuel Type	Gasoline
Configuration	8-cylinder, liquid-cooled V-8
Displacement	391 ci 6.4 L
Bore/Stroke	4.05x3.50 inches 103 x 89 mm
Power	165 hp 123.0 kW
Fuel system	dual carburetors
Air cleaner	dry
Compression	7.6:1
Rated RPM	2800
Firing order	1-5-4-2-6-3-7-8
Starter	electric
Starter volts	12
Oil capacity	8 qts 7.6 L

Transmission

Transmission — Versatile

Transmission	Versatile
Type	gear

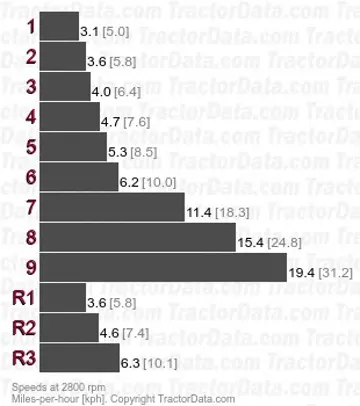

Gears	9 forward and 3 reverse
Clutch	mechanical dry disc
With 18.4-30 rear tires.

Dimensions

Versatile 125 Tires
Ag front	18.4-30
Ag rear	18.4-30
Ag front	23.1-30
	18.4-38
Ag rear	23.1-30
	18.4-38

Dimensions
Wheelbase	120 inches 304 cm
Length	210 inches 533 cm
Width	95 inches 241 cm
Height (steering wheel)	100 inches 254 cm
Weight	12100 lbs 5488 kg

Photos

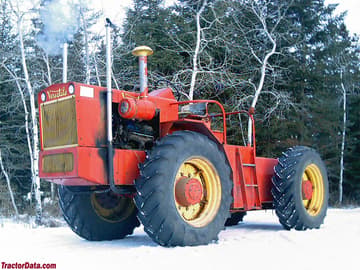

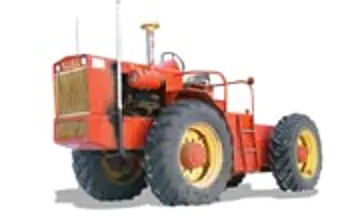

Versatile 125
