Versatile 300

The Versatile 300 is a tractor produced by Versatile. It is equipped with a 378 ci 6.2 L engine. The listed engine power is Diesel (listed): 155 hp / 115.6 kW. Transmission: Hydro-Mech. Drive type: 4x4 4WD. Operating weight: 12,700 lbs 5760 kg.

Engine Power
Diesel (listed): 155 hp / 115.6 kW
Drive & Traction
4x4 4WD
Fuel & Capacities
65 gal 246.0 L
Transmission
Hydro-Mech
Operating Weight
12,700 lbs 5760 kg

Overview

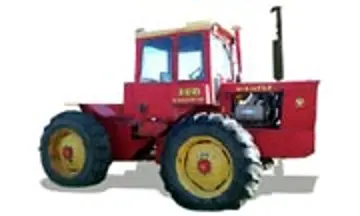

Versatile 300 tractor photo
1973 Four-wheel Drive (4WD) tractor
Production
Manufacturer
Versatile
Four-wheel Drive (4WD) tractor
Built in Winnipeg, Manitoba, Canada
Total built
200
Original price was $17,000 in 1973
Versatile 300 Engine
Cummins 6.2L 6-cyl diesel
Fuel tank
65 gal 246.0 L
Engine details ...
Versatile 300 Transmission
hydrostatic
Transmission details ...
Versatile 300 Power
Engine
155 hp 115.6 kW
PTO (claimed)
120 hp 89.5 kW
Mechanical
Drive
4x4 4WD
Cab standard with available air-conditioning..
Tractor hitch
Rear Type
III OptOptional
Rear lift (at 24"/610mm)
4400 lbs 1995 kg
Power Take-off (PTO)
Rear PTO
live
Rear PTO Type
1000
Dimensions & Tires
Wheelbase
110 inches 279 cm
Weight
12,700 lbs 5760 kg
Front tire
18.4x34
Rear tire
18.4x34
Full dimensions and tires ...
Electrical
Ground
negative
Charging amps
58
Batteries
2
Battery CCA
204
Battery volts
12
References
300 references literature
300 published in 1973, by Versatile

Engine

Engine Detail — 378 ci / 6.2 L Diesel

Manufacturer
Cummins V378
Fuel Type
Diesel
Configuration
6-cylinder V-6-valve, liquid-cooled
Displacement
378 ci 6.2 L
Bore/Stroke
4.625x3.75 inches 117 x 95 mm
Power
155 hp 115.6 kW
Rated RPM
2800
Coolant capacity
28 qts 26.5 L

Transmission

Transmission — Hydro-Mech

Transmission
Hydro-Mech
Type
hydrostatic
Gears
infinite forward and reverse
Clutch
330.2mm dry disc
300 Hydro-Mech hydrostatic speeds

Dimensions

Versatile 300 Tires
Ag front
18.4x34
Ag rear
18.4x34
Dimensions
Wheelbase
110 inches 279 cm
Length
212 inches 538 cm
Width
56 inches 142 cm
Height (hood)
80 inches 203 cm
Height (cab)
124 inches 314 cm
Shipping weight
12,700 lbs 5760 kg
Front tread
56 to 96 inches 142 to 243 cm
Rear tread
56 to 96 inches 142 to 243 cm

Photos

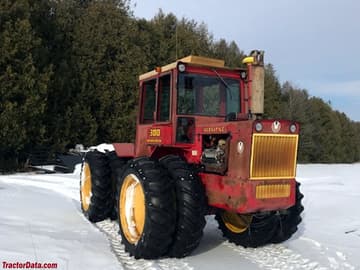

Versatile 300

Versatile 300

Recommended Implements & Sizing Guide

Engineering recommendations for Versatile 300 based on its 155 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
5 to 7 Bottom (18")5 - 7 铧 (45 cm)Commercial / Field ScaleLarge acreage tillage; requires front ballast weights.
Rotary Cutter / MowerMowing & Clearing
15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼Commercial / Field ScaleLarge commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep
90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机Commercial / Field ScaleDeep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage
15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙Commercial / Field ScaleWide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage
Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)Commercial / Field ScaleHigh-capacity commercial forage harvesting (1000 RPM PTO).
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Versatile 300.

Estimated Continuous Field Runtime: 8.1 hrs

Approximately 8.1 hours of continuous field operation at ~75% rated power on a full tank (65 gal / 246.1 L).

Estimated 75% Load Fuel Burn~8.1 gal/hr (30.5 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Versatile 300 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Versatile 300.

Converted Equivalents:

Horsepower (HP)155 hp
Kilowatts (kW)115.6 kW
Metric Horsepower (PS / CV)157.1 PS

Direct Competitor Comparison

Compare Versatile 300 against same-era industry alternatives in the same horsepower class.

Current Model
Versatile

Versatile 300

Engine Power:Diesel (listed): 155 hp / 115.6 kW
★ Baseline Reference
Deutz-FahrMarket Competitor

Deutz-Fahr Agrotron 130

Engine Power:139.5
Production Years:2005 - 2007
International HarvesterMarket Competitor

International Harvester 1066

Engine Power:140
Production Years:1971 - 1976
Massey FergusonMarket Competitor

Massey Ferguson 5480

Engine Power:140
Production Years:2008 - 2013
DeereMarket Competitor

Deere 6140R

Engine Power:140
Production Years:2013 - 2014
