Versatile 175 Nemesis

The Versatile 175 Nemesis is a tractor produced by Versatile. It is equipped with a 408.2 ci 6.7 L engine. The listed engine power is Diesel (listed): 175 hp / 130.5 kW. Transmission: ZF TPT20. Operating weight: 19500 lbs 8845 kg.

Engine Power

Diesel (listed): 175 hp / 130.5 kW

Fuel & Capacities

99 gal 374.7 L

Transmission

ZF TPT20

Operating Weight

19500 lbs 8845 kg

Overview

	2020 - Nemesis SeriesRow-Crop tractor
2020 -
Nemesis Series
Row-Crop tractor

Production
Manufacturer	Versatile (a part of Rostselmash)
Row-Crop tractor
Built in Winnigpeg, Manitoba, Canada
Original price was $161,758 in 2020

Versatile 175 Nemesis Engine
Cummins 6.7L 6-cyl diesel
Fuel tank	99 gal 374.7 L
Exhaust fluid (DEF)	9 gal 34.1 L
Engine details ...

Versatile 175 Nemesis Transmission
30-speed partial power shift
Transmission details ...

Versatile 175 Nemesis Power
Engine	175 hp 130.5 kW
PTO (claimed)	147 hp 109.6 kW

Mechanical
Four-wheel drive
Power steering
Trailer brakes	hydraulic OptOptional
Cab standard with air-conditioning.

Hydraulics
Type	closed center load-sensing
Pressure	2900 psi 200.0 bar
Valves	3 to 5
Pump flow	31 gpm 117.3 lpm
	42 gpm ((Optional) 159.0 lpm

Tractor hitch
Rear Type	III/IIIN
Rear lift	15542 lbs 7049 kg
Front Hitch	IIIN OptOptional
Front lift	8818 lbs 3999 kg
Drawbar	Cat. 3

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)
	1000 (1.75)OptOptional

Dimensions & Tires
Wheelbase	114 inches 289 cm
Weight	19500 lbs 8845 kg
Front tire	600/65R28
Rear tire	710/70R38
Full dimensions and tires ...

Electrical
Ground	negative
Batteries	2
Battery CCA	950
Battery volts	12

References

Nemesis published in 2019, by Versatile

Engine

Engine Detail — 408.2 ci / 6.7 L Diesel

Manufacturer	Cummins B6.7
Configuration	turbocharged aftercooled diesel, 6-cylinder, liquid-cooled inline
Displacement	408.2 ci 6.7 L
Bore/Stroke	4.21x4.88 inches 107 x 124 mm
Emissions	Stage V
Power	175 hp 130.5 kW
Rated RPM	2100
Starter	electric
Starter volts	12

Versatile 175 Nemesis Engine

Transmission

Transmission — ZF TPT20

Transmission	ZF TPT20
Type	partial power shift
Gears	30 forward and 15 reverse
Six-speed power shift with power shuttle.

Dimensions

Versatile 175 Nemesis Tires
Standard tires (ag)	Front: 600/65R28. Rear: 710/70R38
Optional tires (ag)	Front: 380/85R34. Rear: 380/90R50
	Front: 380/85R34. Rear: 480/80R46
	Front: 480/70R30. Rear: 520/85R42
	Front: 480/70R30. Rear: 620/70R42

Dimensions
Wheelbase	114 inches 289 cm
Height (cab)	128 inches 325 cm
Weight	19500 lbs 8845 kg
Bar rear axle	4.1 by 98 inches 104 by 2489 mm
Bar rear axle	4.1 by 118 inches 104 by 2997 mm
Front tread	61 to 88 inches 154 to 223 cm
Rear tread	61 to 98 inches 154 to 248 cm

Photos

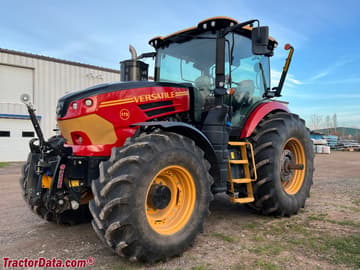

Versatile 175 Nemesis

Recommended Implements & Sizing Guide

Engineering recommendations for Versatile 175 Nemesis based on its 175 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	5 to 7 Bottom (18")5 - 7 铧 (45 cm)	Commercial / Field Scale	Large acreage tillage; requires front ballast weights.
Rotary Cutter / MowerMowing & Clearing	15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼	Commercial / Field Scale	Large commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙	Commercial / Field Scale	Wide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage	Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)	Commercial / Field Scale	High-capacity commercial forage harvesting (1000 RPM PTO).

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Versatile 175 Nemesis.

Estimated Continuous Field Runtime: 10.9 hrs

Approximately 10.9 hours of continuous field operation at ~75% rated power on a full tank (99 gal / 374.8 L).

Estimated 75% Load Fuel Burn~9.1 gal/hr (34.4 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
