Versatile 310

The Versatile 310 is a tractor produced by Versatile. It is equipped with a 543 ci 8.9 L engine. The listed engine power is Diesel (listed): 310 hp / 231.2 kW. Transmission: 16 forward and 9 reverse. Operating weight: 23945 lbs 10861 kg.

Overview

	2014 - 2017 Row-Crop tractor

Production
Manufacturer	Versatile (a part of Rostselmash)
Row-Crop tractor
Built in Winnipeg, Manitoba, Canada

Versatile 310 Engine
Cummins 8.9L 6-cyl diesel
Fuel tank	170 gal 643.5 L
Engine details ...

Versatile 310 Transmission
16-speed full power shift
Transmission details ...

Versatile 310 Power
Engine	310 hp 231.2 kW

Mechanical
Four-wheel drive
Final drives	inboard planetary
Power steering
Cab standard with air-conditioning.

Hydraulics
Type	closed center load sensing (CCLS)
Pressure	2900 psi 200.0 bar
Valves	4 to 6
Pump flow	55 gpm 208.2 lpm
	75 gpmOptOptional 283.9 lpm

Tractor hitch
Rear Type	III/IIIN
Rear lift	18850 lbs 8550 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000
	540/1000 OptOptional

Dimensions & Tires
Wheelbase	124.6 inches 316 cm
Weight	23945 lbs 10861 kg
Front tire	420/90R30
Rear tire	480/80R46
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	200
Charging volts	12
Batteries	2
Battery CCA	950
Battery volts	12

References
MFWD Tractors published in 2014, by Versatile

Engine

Engine Detail — 543 ci / 8.9 L Diesel

Manufacturer	Cummins QSL9
Configuration	turbocharged and air-to-air aftercooled diesel, 6-cylinder, liquid-cooled inline
Displacement	543 ci 8.9 L
Bore/Stroke	4.49x5.69 inches 114 x 145 mm
Emissions	Interim Tier IV
Emission control	exhaust gas recirculation and diesel particulate filter (DPF) (EGR)
Power	310 hp 231.2 kW
Maximum Power	340 hp 253.5 kW
Rated RPM	2100
Torque	995 lb-ft 1349.2 Nm
Torque RPM	1500
Starter	electric
Starter volts	12

Versatile 310 Engine

Transmission

Transmission — 16 forward and 9 reverse full power shift

Type	full power shift
Gears	16 forward and 9 reverse

Dimensions

Versatile 310 Tires
Ag front	420/90R30
Ag rear	480/80R46

Dimensions
Wheelbase	124.6 inches 316 cm
Length	252 inches 640 cm
Height (cab)	134.7 inches 342 cm
Weight	23945 lbs 10861 kg
Max weight	32800 lbs 14878 kg
Bar rear axle	4.3 by 120 inches 109 by 3048 mm
Front tread	60 to 88 inches 152 to 223 cm
Rear tread	60 to 132 inches 152 to 335 cm

Photos

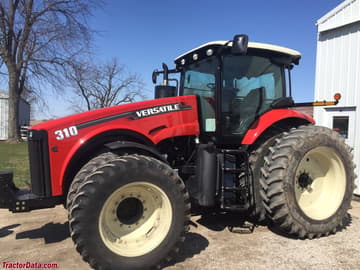

Versatile 310, left side.

Versatile 310 with disc, right side.
