Versatile 435

The Versatile 435 is a tractor produced by Versatile. It is equipped with a 912 ci 14.9 L engine. The listed engine power is Diesel (listed): 435 hp / 324.4 kW. Transmission: Quadshift. Operating weight: 42000 lbs 19051 kg.

Overview

	2008 - 2011 Four-wheel Drive (4WD) tractor

Production
Manufacturer	Versatile (a part of Rostselmash)
Four-wheel Drive (4WD) tractor
Built in Winnipeg, Manitoba, Canada

Versatile 435 Engine
Cummins 14.9L 6-cyl diesel
Engine details ...

Versatile 435 Power
Engine	435 hp 324.4 kW

Mechanical
Four-wheel drive
Final drives	outboard planetary
Differential lock	optional
Steering	hydrostatic power
Dry caliper brakes
Trailer brakes	hydraulic (optional)
Cab standard with air-conditioning.

Capacity
Fuel	350 gal 1324.8 L
Hydraulic system	30 gal 113.6 L

Hydraulics
Type	closed center load sensing (CCLS)
Capacity	30 gal 113.6 L
Pressure	2900 psi 200.0 bar
Valves	4 to 6 (mechanical)
	4 to 8 (electro-hydraulic)
Pump flow	55 gpm 208.2 lpm
	80 gpm (optional) 302.8 lpm

Dimensions & Tires
Wheelbase	154 inches 391 cm
Weight	42000 lbs 19051 kg
Front tire	710/70R42
Rear tire	710/70R42
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	160
Charging volts	12
Batteries	3
Battery CCA	950
Battery volts	12

Engine

Engine Detail — 912 ci / 14.9 L Diesel

Manufacturer	Cummins QSX15
Configuration	turbocharged and air-to-air aftercooled diesel, 6-cylinder, liquid-cooled inline
Displacement	912 ci 14.9 L
Bore/Stroke	5.39x6.65 inches 137 x 169 mm
Power	435 hp 324.4 kW
Maximum Power	470 hp 350.5 kW
Torque	1475 lb-ft 2000.1 Nm
Torque RPM	1400
Starter	electric
Starter volts	12
Oil capacity	50.5 qts 47.8 L
Coolant capacity	87.7 qts 83.0 L

Transmission

Transmission options
12-speed partiallly synchronized
16-speed full power shift

Transmission — Quadshift

Transmission	Quadshift
Type	partiallly synchronized
Gears	12 forward and 4 reverse

Transmission — 16 forward and 4 reverse full power shift

Manufacturer	Caterpillar
Type	full power shift
Gears	16 forward and 4 reverse
Clutch	wet disc

Dimensions

Versatile 435 Tires
Ag front	710/70R42
Ag rear	710/70R42

Dimensions
Wheelbase	154 inches 391 cm
Length	299 inches 759 cm
Height (cab)	135.8 inches 344 cm
Ground clearance	21.9 inches 55 cm

Versatile 435 Weight
	42000 lbs 19051 kg
Max capacity	43500 lbs 19731 kg
Max Drawbar	9000 lbs 4082 kg
	12000 lbs (heavy duty) 5443 kg

Photos

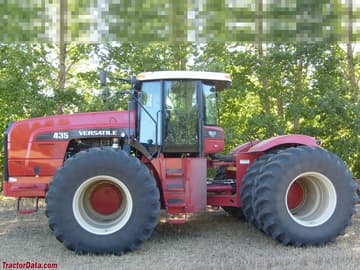

Versatile 435

Versatile 435
