White 2-150

The White 2-150 is a tractor produced by White. It is equipped with a 585 ci 9.6 L engine. The rated power output is 147.49 hp 110.0 kW. Transmission: Hydraul-Shift. Operating weight: 16,940 lbs 7683 kg.

Engine Power
147.49 hp 110.0 kW
Fuel & Capacities
40 gal 151.4 L
Transmission
Hydraul-Shift
Operating Weight
16,940 lbs 7683 kg

White 2-150 Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

White 2-150 tractor photo
1975 - 1976 Row-Crop tractor
1975 - 1976
Row-Crop tractor
Production
Manufacturer
White
Row-Crop tractor
Original price
$22,500 (1976)
White 2-150 Engine
White 9.6L 6-cyl diesel
Fuel tank
40 gal 151.4 L
78 gal*Optional fender tanks. 295.2 L
Engine details ...
White 2-150 Power
PTO (claimed)
145 hp 108.1 kW
Drawbar (tested)
121.35 hp 90.5 kW
PTO (tested)
147.49 hp 110.0 kW
Performance test details ...
Mechanical
Two-wheel drive
Final drives
planetary
Power steering
Hydraulic dry disc brakes
Open operator station. Available two-post fixed ROPS. Cab optional with air-conditioning.
Hydraulics
Type
closed center
Pressure
2200 psi 151.7 bar
Valves
1 to 4
Pump flow
20 gpm 75.7 lpm
Tractor hitch
Rear Type
III/II
Rear lift
6000 lbs 2721 kg
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
1000 (1.375)
540/1000 (1.375)OptOptional
Engine RPM
540@2200
1000@2200
Dimensions & Tires
Wheelbase
111 inches 281 cm
Weight
16,940 lbs 7683 kg
Front tire
11.00-16
Rear tire
18.4-38
Full dimensions and tires ...
Electrical
Charging system
alternator
References
2-150 references literature
1975 Farm Equipment Line published by White
1976 Farm Equipment Line published by White

Engine

Engine Detail — 585 ci / 9.6 L Diesel

Manufacturer
White
Fuel Type
Diesel
Configuration
6-cylinder, liquid-cooled
Displacement
585 ci 9.6 L
Bore/Stroke
4.75x5.50 inches 121 x 140 mm
Fuel system
direct injection
Air cleaner
dual paper elements
Compression
15.3:1
Rated RPM
2200
Idle RPM
700-2335
Starter volts
12
Oil capacity
14 qts 13.2 L
Coolant capacity
33 qts 31.2 L

Transmission

Transmission options
6-speed unsynchronized
18-speed partial powershift

Transmission — 6 forward and 2 reverse unsynchronized

Type
unsynchronized
Gears
6 forward and 2 reverse
Clutch
356mm dry disc
2-150 unsynchronized speeds

Transmission — Hydraul-Shift

Transmission
Hydraul-Shift
Type
partial powershift
Gears
18 forward and 6 reverse
Clutch
356mm dry disc
Six forward and two reverse gears with an over and under powershift for each gear.

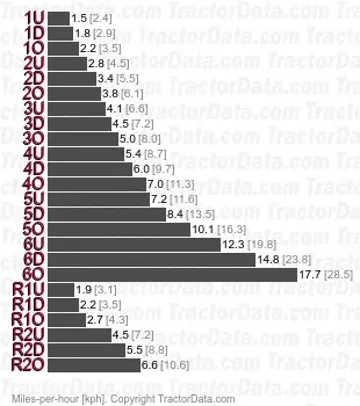

2-150 Hydraul-Shift partial powershift speeds

Dimensions

White 2-150 Tires
Ag front
11.00-16
Ag rear
18.4-38
Ag front
14L-16
Ag rear
20.8-38
23.1-34
Dimensions
Wheelbase
111 inches 281 cm
Length
183 inches 464 cm
Width
81.5 inches*Minimum width 207 cm
Height (steering wheel)
85.5 inches 217 cm
Operating weight
16,940 lbs 7683 kg
Clearance (front axle)
20.5 inches 52 cm
Clearance (rear axle)
27.3 inches 69 cm

Tests

Nebraska Tractor Test 1182
Diesel 18-speed 2WD June 16 - 60, 1975 Link: Nebraska Tractor Test 1182 file
PTO performance
Power at rated engine speed
147.49 hp 110.0 kW
Fuel use
10.2 gal/hour 38.6 l/hour
Drawbar performance
Max power
121.35 hp 90.5 kW
Fuel use
10.1 gal/hour 38.2 l/hour
Gear 4-under used for power test.
Max pull
15059 lbs 6830 kg
Gear 2-U used for pull test.

Photos

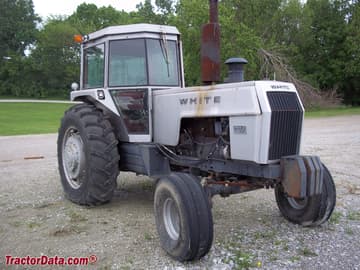

White 2-150 row-crop tractor, right side.

White 2-150 row-crop tractor, right side.

White 2-150, left side.

White 2-150, left side.
