White Workhorse 125

The White Workhorse 125 is a tractor produced by White. It is equipped with a 359 ci 5.9 L engine. The rated power output is 119.13 hp 88.8 kW. Transmission: 3x6 Over/Under. Operating weight: 14465 lbs 6561 kg.

Overview

	1990 - 1992 Workhorse SeriesRow-Crop tractor
1990 - 1992
Workhorse Series
Row-Crop tractor

Production
Manufacturer	White
Row-Crop tractor
Original price was $55,000 in 1992

White 125 Engine
CDC-Cummins 5.9L 6-cyl diesel
Fuel tank	58 gal 219.5 L
Engine details ...

White 125 Transmission
18-speed partial power shift
Transmission details ...

White 125 Power
Drawbar (tested)	103.03 hp 76.8 kW
PTO (tested)	119.13 hp 88.8 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Differential lock	hydraulic rear
Power steering
Hydraulic wet disc brakes
Cab standard with air-conditioning.

Hydraulics
Type	open center
Pressure	2250 psi 155.1 bar
Rear valves	2 or 3
Pump flow	22 gpm 83.3 lpm

Tractor hitch
Rear Type	III/II
Control	lower-link draft sensing
Rear lift	7223 lbs 3276 kg
	8444 lbsOptOptional 3830 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
2WD Wheelbase	111.5 inches 283 cm
4WD Wheelbase	99 inches 251 cm
Weight	14465 lbs 6561 kg
Front tire	10.00-16
Rear tire	18.4R-38
Full dimensions and tires ...

Electrical
Ground	negative

References
Workhorse Tractors published in 1990, by White

Engine

Engine Detail — 359 ci / 5.9 L Diesel

Manufacturer	CDC-Cummins
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	359 ci 5.9 L
Bore/Stroke	4.016x4.724 inches 102 x 120 mm
Air cleaner	dual paper elements
Compression	18.5:1
Rated RPM	2200
Starter volts	12

Transmission

Transmission — 3x6 Over/Under

Transmission	3x6 Over/Under
Type	partial power shift
Gears	18 forward and 6 reverse
Six forward and two reverse gears with an over and under powershift for each gear.

Dimensions

White 125 Tires
Ag front	10.00-16
Ag rear	18.4R-38

Dimensions
2WD Wheelbase	111.5 inches 283 cm
4WD Wheelbase	99 inches 251 cm
Length	174 inches 441 cm
Operating weight	14465 lbs 6561 kg
Ballasted weight	15315 lbs 6946 kg
2WD Front tread	60 to 84 inches 152 to 213 cm
4WD Front tread	59.7 to 87 inches 151 to 220 cm
Rear tread	60 to 106 inches 152 to 269 cm

Tests

Nebraska Tractor Test 1615
Diesel 18-speed 2WD September 21 - October 4, 1988 Link: Nebraska Tractor Test 1615 file
PTO performance
Power at rated engine speed	119.13 hp 88.8 kW
Fuel use	7.1 gal/hour 26.9 l/hour
Power at rated PTO speed	121.94 hp 90.9 kW
Fuel use	7.2 gal/hour 27.3 l/hour
Drawbar performance
Max power	103.03 hp 76.8 kW
Fuel use	7.0 gal/hour 26.5 l/hour
Gear 4-direct used for power test.
Max pull	14286 lbs 6480 kg
Gear 1-Over used for pull test.

Photos

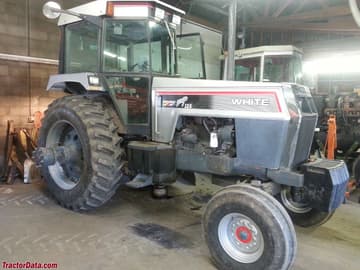

White Workhorse 125
