White 2-88

The White 2-88 is a tractor produced by White. It is equipped with a 354 ci 5.8 L engine. The rated power output is 86.78 hp 64.7 kW. Transmission: 3x6 Over/Under. Operating weight: 11685 to 13615 pounds.

Overview

	1982 - 1987 Row-Crop tractor
1982 - 1987
Row-Crop tractor

Production
Manufacturer	White
Row-Crop tractor
Original price was $36,000 in 1987

White 2-88 Engine
Perkins 5.8L 6-cyl diesel
Engine details ...

White 2-88 Transmission
18-speed partial powershift
Transmission details ...

White 2-88 Power
Drawbar (tested)	73.38 hp 54.7 kW
PTO (tested)	86.78 hp 64.7 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Power steering
Hydraulic double disc brakes
Cab standard with heat and air-conditioning. Optional ROPS canopy.

Capacity
Fuel	58 gal 219.5 L
Hydraulic system	9 gal 34.1 L
	8.25 gal (with 3-pt) 31.2 L

Hydraulics
Type	closed center constant pressure
Capacity	9 gal 34.1 L
	8.25 gal (with 3-pt) 31.2 L
Pressure	2250 psi 155.1 bar
Valves	2
Total flow	20 gpm 75.7 lpm

Tractor hitch
Rear Type	II/I
	III/II OptOptional

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
2WD Wheelbase	109.6 inches 278 cm
4WD Wheelbase	89 inches 226 cm
Weight	11685 to 13615 pounds
Front tire	9.5L-15
2WD Rear tire	18.4-34
Full dimensions and tires ...

Electrical
Charging system	alternator
Charging amps	61
Batteries	2
Battery volts	6

References
2-88/2-110 Field Boss Tractors published in 1984, by White

Engine

Engine Detail — 354 ci / 5.8 L Diesel

Manufacturer	Perkins
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	354 ci 5.8 L
Bore/Stroke	3.875x5.00 inches 98 x 127 mm
Air cleaner	dual paper elements
Compression	16:1
Rated RPM	2200
Idle RPM	775-2420
Starter volts	12
Oil capacity	16 qts 15.1 L
Coolant capacity	24 qts 22.7 L

Transmission

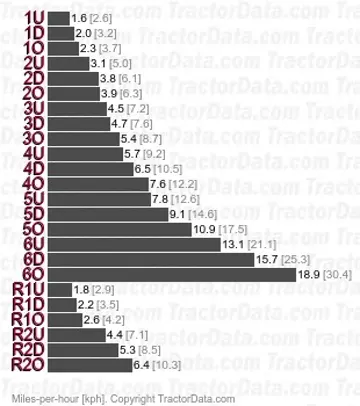

Transmission — 3x6 Over/Under

Transmission	3x6 Over/Under
Type	partial powershift
Gears	18 forward and 6 reverse
Oil capacity	46.5 qts 44.0 L
Six forward and two reverse gears with an over and under powershift for each gear.

Dimensions

White 2-88 Tires
2WD Standard tires (ag)	Front: 9.5L-15. Rear: 18.4-34
4WD Standard tires (ag)	Front: 14.9-28. Rear: 18.4-38
4WD Optional tires (ag)	Front: 14.9-28. Rear: 16.9-38
4WD Optional tires (ag)	Front: 18.4-28. Rear: 20.8-38
2WD Ag front	7.50-16
2WD Ag front	11L-15
2WD Ag front	11.00-16
2WD Ag rear	16.9-34
2WD Ag rear	15.5-38
2WD Ag rear	16.9-38
2WD Ag rear	18.4-38
2WD Ag rear	20.8-34
2WD Ag rear	20.8-38

Dimensions
2WD Wheelbase	109.6 inches 278 cm
4WD Wheelbase	89 inches 226 cm
Length	166.1 inches 421 cm
Width	80.6 inches 204 cm
Height (cab)	116 inches 294 cm
2WD Clearance (front axle)	25.6 inches 65 cm
4WD Clearance (front axle)	17 inches 43 cm
Clearance (rear axle)	25.4 inches 64 cm
Clearance (drawbar)	13.5 inches 34 cm
Rear axle	3.1875 inch diameter 80 mm
Front tread	60 to 92 inches 152 to 233 cm
Rear tread	61.25 to 119.5 inches 155 to 303 cm

White 2-88 Weight
2WD cab Shipping	11685 lbs 5300 kg
4WD cab Shipping	13470 lbs 6109 kg
Operating	13615 lbs 6175 kg

Tests

Nebraska Tractor Test 1487
Diesel 18-speed 4WD August 22 - September 7, 1983 Link: Nebraska Tractor Test 1487 file
PTO performance
Power at rated engine speed	86.78 hp 64.7 kW
Fuel use	5.5 gal/hour 20.8 l/hour
Drawbar performance
Max power	73.38 hp 54.7 kW
Fuel use	5.4 gal/hour 20.4 l/hour
Gear 4-direct used for power test.
Max pull	9,486 lbs 4302 kg
Gear 1-over used for pull test.

Photos

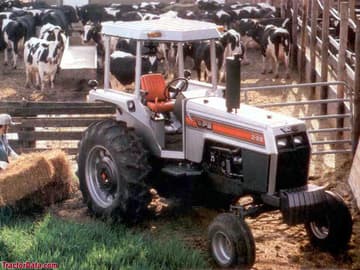

White model 2-88 tractor marketing photo.
