White 1470
The White 1470 is a tractor produced by White. It is equipped with a 278.3 ci 4.6 L engine. The listed engine power is Diesel (listed): 77 hp / 57.4 kW. Transmission: 7 forward and 2 reverse. Operating weight: 6700 lbs 3039 kg.
Engine Power
Diesel (listed): 77 hp / 57.4 kW
Fuel & Capacities
Diesel
Transmission
7 forward and 2 reverse
Operating Weight
6700 lbs
3039 kg
Overview
 | 1973 - 1975
Utility tractorFiat built
Utility tractor
Fiat built |
|---|
Production | |
|---|---|
Distributor | White |
Manufacturer | Fiat |
Utility tractor | |
Original price was $11,000 in 1975 | |
The White 1470 was built by Fiat, and is based on the Fiat 750. The tractor was also sold under the Cockshutt and Oliver brands which were owned by White at that time. | |
White 1470 Engine | |
|---|---|
OM 4.6L 4-cyl diesel | |
Engine details ...  |
White 1470 Transmission | |
|---|---|
7-speed gear | |
Transmission details ...  |
White 1470 Power | |
|---|---|
Engine | 77 hp
57.4 kW |
Drawbar (claimed) | 58 hp
43.3 kW |
PTO (claimed) | 70 hp
52.2 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | power |
Disc brakes | |
Open operator station. Optional ROPS and canopy. | |
Hydraulics | |
|---|---|
Pressure | 2135 psi
147.2 bar |
Total flow | 6.2 gpm
23.5 lpm |
Tractor hitch | |
|---|---|
Rear Type | I/II |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Wheelbase | 92.75 inches
235 cm |
Weight | 6700 lbs
3039 kg |
Front tire | 7.50-18 |
Rear tire | 18.4-30 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Power Pointers White 1465/1470 |
Engine
Engine Detail — 278.3 ci / 4.6 L Diesel
Manufacturer | OM C03/70 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 278.3 ci
4.6 L |
Bore/Stroke | 4.331x4.7241 inches
110 x 120 mm |
Power | 77 hp
57.4 kW |
Fuel system | direct injection |
Compression | 17:1 |
Rated RPM | 2100 |
Starter volts | 12 |
Transmission
Transmission — 7 forward and 2 reverse gear
Type | gear |
Gears | 7 forward and 2 reverse |
18.4x34 rear tires. | |
 | |
Dimensions
White 1470 Tires | |
|---|---|
Ag front | 7.50-18 |
Ag rear | 18.4-30 |
Dimensions | |
|---|---|
Wheelbase | 92.75 inches
235 cm |
Length | 140 inches
355 cm |
Height (steering wheel) | 68.8 inches
174 cm |
Shipping weight | 6700 lbs
3039 kg |
Ballasted weight | 10,600 lbs
4808 kg |
Ground clearance | 20.3 inches
51 cm |

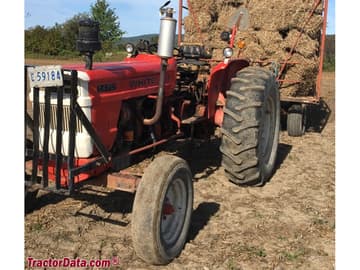

Photos
White 1470
Recommended Implements & Sizing Guide
Engineering recommendations for White 1470 based on its 77 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 7 to 8 ft (84-96 in)2.1 - 2.4 m | Heavy Duty | Heavy-duty twin spindle cutter for overgrown acreage. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for White 1470.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
White 1470 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for White 1470.
Converted Equivalents:
Horsepower (HP)77 hp
Kilowatts (kW)57.4 kW
Metric Horsepower (PS / CV)78.1 PS
Direct Competitor Comparison
Compare White 1470 against same-era industry alternatives in the same horsepower class.
Current Model
White
White 1470
Engine Power:Diesel (listed): 77 hp / 57.4 kW
★ Baseline Reference
