White 2-75

The White 2-75 is a tractor produced by White. It is equipped with a 329.1 ci 5.4 L engine. The rated power output is 75.39 hp 56.2 kW. Transmission: 16 forward and 4 reverse. Drive type: 4x2 2WD. Operating weight: 6108 to 7920 pounds.

Overview

	1982 - 1987 Field Boss SeriesUtility tractorIseki built
1982 - 1987
Field Boss Series
Utility tractor
Iseki built

1982 - 1987
Field Boss Series
Utility tractor
Iseki built

Production
Distributor	White
Manufacturer	Iseki
Utility tractor

Variants
Iseki T9000	similar tractor

White 2-75 Engine
Isuzu 5.4L 6-cyl diesel
Engine details ...

White 2-75 Transmission
16-speed synchromesh
Transmission details ...

White 2-75 Power
PTO (claimed)	75.39 hp 56.2 kW
Drawbar (tested)	63.58 hp 47.4 kW
PTO (tested)	75.39 hp 56.2 kW
Performance test details ...

Mechanical
Drive	4x2 2WD
	4x4 MFWD 4WD (optional)
Differential lock	foot-activated standard
Steering	power
Differential wet disc brakes
Two-post ROPS. Optional canopy.

Capacity
Fuel	21.1 gal 79.9 L
Hydraulic system	8.8 gal 33.3 L

Hydraulics
Type	open center
Capacity	8.8 gal 33.3 L
Pressure	2560 psi 176.5 bar
Valves	1 to 3
Total flow	11.9 gpm 45.0 lpm

Tractor hitch
Rear Type	II/I
Rear lift (at 24"/610mm)	5,291 lbs 2399 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000/ground

Dimensions & Tires
Wheelbase	90.6 inches 230 cm
Weight	6108 to 7920 pounds
Front tire	7.50-18
Rear tire	16.9-34 (2WD)
Full dimensions and tires ...

Electrical
Charging system	alternator
Charging amps	35
Batteries	2
Battery volts	12

References
1100 Series Front End Loaders published in 1987, by White
2-55/2-65/2-75 Field Boss Tractors published in 1986, by White

Engine

	1982 - 1987 Field Boss SeriesUtility tractorIseki built
1982 - 1987
Field Boss Series
Utility tractor
Iseki built

1982 - 1987
Field Boss Series
Utility tractor
Iseki built

Engine Detail — 329.1 ci / 5.4 L Diesel

Manufacturer	Isuzu
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	329.1 ci 5.4 L
Bore/Stroke	4.016x4.331 inches 102 x 110 mm
Air cleaner	dry with pre-cleaner
Pre-heating	glow plugs
Rated RPM	2200
Idle RPM	675-2420
Starter volts	12
Oil capacity	16.9 qts 16.0 L
Coolant capacity	19.3 qts 18.3 L

Transmission

	1982 - 1987 Field Boss SeriesUtility tractorIseki built
1982 - 1987
Field Boss Series
Utility tractor
Iseki built

1982 - 1987
Field Boss Series
Utility tractor
Iseki built

Transmission — 16 forward and 4 reverse synchromesh

Type	synchromesh
Gears	16 forward and 4 reverse
Oil capacity	35.3 qts 33.4 L

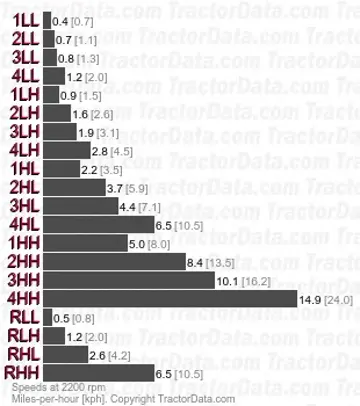

Three gears, plus reverse, with high-low creeper and high-low auxiliary ranges.
With 16.9-34 rear tires. Speeds expressed as gear-creeper-auxiliary.

Dimensions

	1982 - 1987 Field Boss SeriesUtility tractorIseki built
1982 - 1987
Field Boss Series
Utility tractor
Iseki built

1982 - 1987
Field Boss Series
Utility tractor
Iseki built

White 2-75 Tires
Standard tires (ag)	Front: 7.50-18. Rear: 16.9-34 (2WD)
	Front: 11.20-24. Rear: 16.9-34 (4WD)

Dimensions
Wheelbase	90.6 inches 230 cm
Length	153.5 inches 389 cm
Width	74 inches 187 cm
Height (exhaust)	100.4 inches 255 cm
Clearance (front axle)	20.3 inches 51 cm

White 2-75 Weight
Shipping	6,108 lbs (2WD) 2770 kg
Operating	7,920 lbs (4WD) 3592 kg
Ballasted	9,625 lbs 4365 kg

Tests

	1982 - 1987 Field Boss SeriesUtility tractorIseki built
1982 - 1987
Field Boss Series
Utility tractor
Iseki built

1982 - 1987
Field Boss Series
Utility tractor
Iseki built

Nebraska Tractor Test 1486
Diesel 16-speed 4WD August 22 - September 1, 1983 Link: Nebraska Tractor Test 1486 file
PTO performance
Power at rated engine speed	75.39 hp 56.2 kW
Fuel use	4.9 gal/hour 18.5 l/hour
Power at rated PTO speed	75.64 hp 56.4 kW
Fuel use	4.8 gal/hour 18.2 l/hour
Drawbar performance
Max power	63.58 hp 47.4 kW
Fuel use	4.9 gal/hour 18.5 l/hour
Gear 4HL used for power test.
Max pull	6,487 lbs 2942 kg
Gear 2HL used for pull test.

Attachments

	1982 - 1987 Field Boss SeriesUtility tractorIseki built
1982 - 1987
Field Boss Series
Utility tractor
Iseki built

1982 - 1987
Field Boss Series
Utility tractor
Iseki built

Photos

White 2-75 tractor photo
