White GT-1120
The White GT-1120 is a tractor produced by White Lawn Tractors. It is equipped with a 399 cc 24.36 ci engine. The listed engine power is Gasoline (gross): 11 hp / 8.2 kW. Transmission: Peerless 2337. Operating weight: 795 lbs 360 kg.
Engine Power
Gasoline (gross): 11 hp / 8.2 kW
Fuel & Capacities
3 gal
11.4 L
Transmission
Peerless 2337
Operating Weight
795 lbs
360 kg
Overview
 | 1978 - 1980
Garden tractorMTD built
Garden tractor
MTD built |
|---|
Production | |
|---|---|
Distributor | White |
Manufacturer | MTD |
Garden tractor | |
White GT-1120 Engine | |
|---|---|
11HP Briggs & Stratton 399cc 1-cyl gasoline | |
Fuel tank | 3 gal
11.4 L |
Engine details ...  | |
White GT-1120 Transmission | |
|---|---|
16-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station. |
Tractor hitch | |
|---|---|
Rear Type | 0 OptOptional |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Mid PTO Type | pulley |
Dimensions & Tires | |
|---|---|
Wheelbase | 48.5 inches
123 cm |
Weight | 795 lbs
360 kg |
Front tire | 16x6.50 |
Rear tire | 23x8.50 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
The new silver standard in lawn & garden tractors published in 1980, by White | |
Garden Tractors - Yard Boss GT Series published in 1980, by White* | |
GT 1120 Yard Boss Facts and Features Guide (432 819) published in 1980 | |
GT 1120 Yard Boss Facts and Features Guide published in 1978, by White | |
Lawn and Garden Equipment published in 1978, by White | |
1978 Farm Equipment Line published by White | |
1979 Farm Equipment Line published by White | |
*Publication contains known errors. |
Engine
Engine Detail — 399 cc / 24.36 ci Gasoline
Manufacturer | Briggs & Stratton 253417 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled horizontal-shaft |
Displacement | 399 cc
24.36 ci |
Bore/Stroke | 3.44x2.625 inches
87 x 67 mm |
Power (gross) | 11 hp
8.2 kW |
Rated RPM | 3500 |
Torque | 16.7 lb-ft
22.6 Nm |
Torque RPM | 2700 |
Starter | electric |
Starter volts | 12 |
Sparkplug gap | 0.030 inches
0.762 mm |
Point gap | 0.020 inches
0.508 mm |
Oil capacity | 1.25 qts
1.2 L |
Oil change | 25 h |
Transmission
Transmission — Peerless 2337
Transmission | Peerless 2337 |
Type | belt-driven gear |
Gears | 16 forward and 4 reverse |
Oil capacity | 2 qts
1.9 L |
Oil type | SAE EP 90 |
Oil change | every two years |
Four-speed transmission with four-position variator. | |
Dimensions
White GT-1120 Tires | |
|---|---|
Lawn/turf front | 16x6.50 |
Lawn/turf rear | 23x8.50 |
Dimensions | |
|---|---|
Wheelbase | 48.5 inches
123 cm |
Height | 42 inches
106 cm |
Shipping weight | 795 lbs
360 kg |
Attachments
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
50" mid-mount mower deck | |
Snowblower | |
Blade | |
Some White sales literature only listed the 42-inch mower deck for the GT-1120. While the 50-inch can be mounted, it may have been considered too much for the tractor's available power. A 40-inch three-point hitch mount tiller was available, model 991-124. The tiller and snowblower required the front/rear PTO shaft kit, 991-219. |
Photos

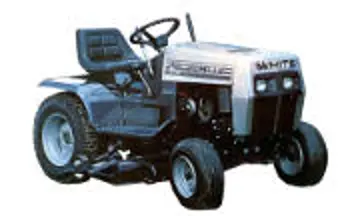

White GT-1120 tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for White Lawn Tractors White GT-1120.
Estimated Continuous Field Runtime: 5.2 hrs
Approximately 5.2 hours of continuous field operation at ~75% rated power on a full tank (3 gal / 11.4 L).
Estimated 75% Load Fuel Burn~0.6 gal/hr (2.2 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
White Lawn Tractors White GT-1120 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for White Lawn Tractors White GT-1120.
Converted Equivalents:
Horsepower (HP)11 hp
Kilowatts (kW)8.2 kW
Metric Horsepower (PS / CV)11.2 PS
