White GT-205
The White GT-205 is a tractor produced by White Lawn Tractors. The listed engine power is Gasoline (gross): 20 hp / 14.9 kW. Transmission: Hydro-Gear. Operating weight: 790 lbs 358 kg.
Engine Power
Gasoline (gross): 20 hp / 14.9 kW
Fuel & Capacities
2.5 gal
9.5 L
Transmission
Hydro-Gear
Operating Weight
790 lbs
358 kg
Overview
 | 1994 - 1999
GT SeriesGarden tractor
GT Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | White (a part of MTD) |
Garden tractor | |
Built in Willard, Ohio, USA | |
White GT-205 Engine | |
|---|---|
20HP Vanguard 2-cyl gasoline | |
Fuel tank | 2.5 gal
9.5 L |
Engine details ...  | |
White GT-205 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station. |
Tractor hitch | |
|---|---|
Type | sleeve hitch OptOptional |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Mid PTO Type | pulley |
Dimensions & Tires | |
|---|---|
Wheelbase | 46 inches
116 cm |
Weight | 790 lbs
358 kg |
Front tire | 16x6.5 |
Rear tire | 22x9.5 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Owner's Guide GT-185 GT-205 (770-0415) published in 1997 | |
Lawn & Garden Tractors published in 1991, by White | |
Tractors - Lawn Mower - Tillers - Chipper/Shredders - Edgers - Multi-Vacs published in 1994, by White | |
Riding Mowers - Lawn Tractors - Garden Tractors - FR Series published in 1994, by White | |
Outdoor Power published in 1995, by White | |
Outdoor Power published in 1996, by White | |
Lawn Tractors - Garden Tractors - FR Series published in 1996, by White | |
Lawn Tractors - Garden Tractors - Zero-Turn Mowers published in 1997, by White | |
Tractors published in 1998, by White |

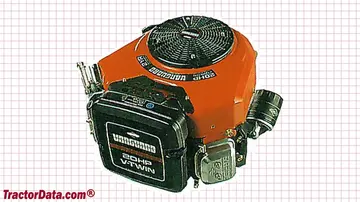

Engine
Engine Detail — Gasoline
Manufacturer | Vanguard |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
The White GT-205 used a Briggs Intek engine for the final year of production. | |
Power (gross) | 20 hp
14.9 kW |
Starter | electric |
Starter volts | 12 |
White GT-205 Engine | |
|---|---|
 |
Transmission
Transmission — Hydro-Gear
Transmission | Hydro-Gear |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
Dimensions
White GT-205 Tires | |
|---|---|
Lawn/turf front | 16x6.5 |
Lawn/turf rear | 22x9.5 |
Dimensions | |
|---|---|
Wheelbase | 46 inches
116 cm |
Shipping weight | 790 lbs
358 kg |
Attachments
Attachment overview | |
|---|---|
50" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
50" Mower deck | |
|---|---|
Type | mid-mount White |
3-blade with manual lift | |
Cutting width | 50 inches
127 cm |
Photos
White GT-205 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for White Lawn Tractors White GT-205 based on its 20 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for White Lawn Tractors White GT-205.
Estimated Continuous Field Runtime: 2.4 hrs
Approximately 2.4 hours of continuous field operation at ~75% rated power on a full tank (2.5 gal / 9.5 L).
Estimated 75% Load Fuel Burn~1 gal/hr (3.9 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
White Lawn Tractors White GT-205 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for White Lawn Tractors White GT-205.
Converted Equivalents:
Horsepower (HP)20 hp
Kilowatts (kW)14.9 kW
Metric Horsepower (PS / CV)20.3 PS
Direct Competitor Comparison
Compare White GT-205 against same-era industry alternatives in the same horsepower class.
Current Model
White Lawn Tractors
White GT-205
Engine Power:Gasoline (gross): 20 hp / 14.9 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 184 Lo-Boy
Engine Power:18
Production Years:1977 - 1980
