White L-11

The White L-11 is a tractor produced by White Lawn Tractors. It is equipped with a 399 cc 24.36 ci engine. The rated power output is 11 hp 8.2 kW. Transmission: CruiseMatic. Operating weight: 350 lbs 158 kg.

Overview

	1988 - 1989 Lawn tractor
1988 - 1989
Lawn tractor

Production
Manufacturer	White (a part of MTD)
Lawn tractor
Original price	$1,099

White L-11 Engine
11HP Briggs & Stratton 399cc 1-cyl gasoline
Fuel tank	1 gal 3.8 L
Engine details ...

White L-11 Transmission
7-speed CVT
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.

Dimensions & Tires
Wheelbase	41 inches 104 cm
Weight	350 lbs 158 kg
Front tire	13.00x6.00
Rear tire	16.00x7.50
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Lawn and Garden Tractor Accessories published in 1988, by White
Riding Mowers & Lawn Tractors published in 1987, by White
Riding Mowers & Lawn Tractors published in 1988, by White

Engine

Engine Detail — 399 cc / 24.36 ci Gasoline

Manufacturer	Briggs & Stratton 253707
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	399 cc 24.36 ci
Bore/Stroke	3.438x2.625 inches 87 x 67 mm
Power (gross)	11 hp 8.2 kW
Starter	electric
Starter volts	12

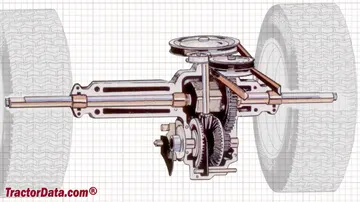

Transmission

Transmission — CruiseMatic

Transmission	CruiseMatic
Type	belt-driven CVT
Gears	7 forward and reverse

White L-11 Transmission

Dimensions

White L-11 Tires
Lawn/turf front	13.00x6.00
Lawn/turf rear	16.00x7.50

Dimensions
Wheelbase	41 inches 104 cm
Height	37 inches 93 cm
Weight	350 lbs 158 kg

Attachments

32" Mower deck
Type	mid-mount White
	2-blade
Cutting width	32 inches 81 cm
Cut height	1 to 3 inch 2 to 7 cm
Cut positions	5

Photos

White L-11

White L-11
