White LT-12
The White LT-12 is a tractor produced by White Lawn Tractors. It is equipped with a 465 cc 28.4 ci engine. The rated power output is 12 hp 8.9 kW. Transmission: CruiseMatic. Operating weight: 428 lbs 194 kg.
Engine Power
12 hp
8.9 kW
Fuel & Capacities
1 gal
3.8 L
Transmission
CruiseMatic
Operating Weight
428 lbs
194 kg
White Lawn Tractors White LT-12 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1987 - 1993
Lawn tractor |
|---|---|
1987 - 1993 | |
Lawn tractor | |
Production | |
|---|---|
Manufacturer | White (a part of MTD) |
Lawn tractor | |
Original price was $1,499 in 1990 | |
Variants | |
|---|---|
LT-12 | gear |
LT-125 | hydrostatic |
White LT-12 Engine | |
|---|---|
12HP Briggs & Stratton 465cc 1-cyl gasoline | |
Fuel tank | 1 gal
3.8 L |
Engine details ...  | |
White LT-12 Transmission | |
|---|---|
7-speed CVT | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Dimensions & Tires | |
|---|---|
Wheelbase | 44.5 inches
113 cm |
Weight | 428 lbs
194 kg |
Front tire | 15x6 |
Rear tire | 18x9.5 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Lawn and Garden Tractor Accessories published in 1988, by White | |
Riding Mowers & Lawn Tractors published in 1987, by White | |
Riding Mowers & Lawn Tractors published in 1988, by White | |
Lawn & Garden Tractors published in 1990, by White | |
Outdoor Power published in 1996, by White | |
Lawn Tractors - Garden Tractors - FR Series published in 1996, by White |
Engine
Engine Detail — 465 cc / 28.4 ci Gasoline
Manufacturer | Briggs & Stratton 286707 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 465 cc
28.4 ci |
Bore/Stroke | 3.4375x3.0625 inches
87 x 78 mm |
Power (gross) | 12 hp
8.9 kW |
Starter | electric |
Starter volts | 12 |
Oil capacity | 1.5 qts
1.4 L |

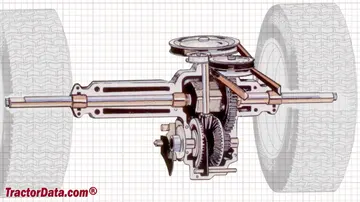

Transmission
Transmission — CruiseMatic
Transmission | CruiseMatic |
Type | belt-driven CVT |
Gears | 7 forward and reverse |
 | |
White LT-12 Transmission | |
|---|---|
 |
Dimensions
White LT-12 Tires | |
|---|---|
Lawn/turf front | 15x6 |
Lawn/turf rear | 18x9.5 |
Dimensions | |
|---|---|
Wheelbase | 44.5 inches
113 cm |
Height | 36 inches
91 cm |
Weight | 428 lbs
194 kg |
Attachments
Attachment overview | |
|---|---|
38" mid-mount mower deck | |
Snowblower | |
Blade |
38" Mower deck | |
|---|---|
Type | mid-mount White |
2-blade | |
Cutting width | 38 inches
96 cm |
Photos
White LT-12
White LT-12
White LT-12
White LT-12
White LT-12 operator station and controls.
