White LT-120

The White LT-120 is a tractor produced by White Lawn Tractors. It is equipped with a 655 cc 40 ci engine. The rated power output is 12.5 hp 9.3 kW. Transmission: CruiseMatic. Operating weight: 560 lbs 254 kg.

Overview

	1986 - 1989 Lawn tractor
1986 - 1989
Lawn tractor

Production
Manufacturer	White (a part of MTD)
Lawn tractor
Original price	$1,649

White LT-120 Engine
12.5HP Briggs & Stratton 655cc 2-cyl gasoline
Fuel tank	2 gal 7.6 L
Engine details ...

White LT-120 Transmission
7-speed CVT
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.

Dimensions & Tires
Wheelbase	45 inches 114 cm
Weight	560 lbs 254 kg
Front tire	15.00x6.00
Rear tire	18.00x9.50
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Lawn and Garden Tractor Accessories published in 1988, by White
Riding Mowers & Lawn Tractors published in 1987, by White
Riding Mowers & Lawn Tractors published in 1988, by White

Engine

Engine Detail — 655 cc / 40 ci Gasoline

Manufacturer	Briggs & Stratton
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft
Displacement	655 cc 40 ci
Power (gross)	12.5 hp 9.3 kW
Starter	electric
Starter volts	12

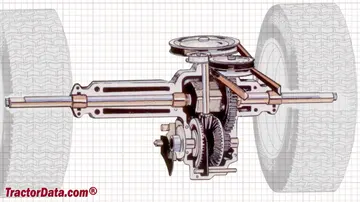

Transmission

Transmission — CruiseMatic

Transmission	CruiseMatic
Type	belt-driven CVT
Gears	7 forward and reverse

White LT-120 Transmission

Dimensions

White LT-120 Tires
Lawn/turf front	15.00x6.00
Lawn/turf rear	18.00x9.50

Dimensions
Wheelbase	45 inches 114 cm
Height	36 inches 91 cm
Weight	560 lbs 254 kg

Attachments

Attachment overview
38" mid-mount mower deck
Snowblower
Blade

38" Mower deck
Type	mid-mount White
	2-blade
Cutting width	38 inches 96 cm
Cut height	1 to 3 inch 2 to 7 cm
Cut positions	5

Photos

White LT-120

White LT-120

White LT-120

White LT-120

White LT-120

White LT-120

White LT-120 operator station and controls.
