Woods 6250
The Woods 6250 is a tractor produced by Woods Lawn Tractors. It is equipped with a 740 cc 45.2 ci engine. The listed engine power is Gasoline (gross): 25 hp / 18.6 kW. Transmission: infinite forward and reverse. Operating weight: 775 lbs 351 kg.
Engine Power
Gasoline (gross): 25 hp / 18.6 kW
Fuel & Capacities
4 gal
15.1 L
Transmission
infinite forward and reverse
Operating Weight
775 lbs
351 kg
Overview
 | 1995 - 2001
6000 SeriesFront-mount mower
6000 Series
Front-mount mower |
|---|
Production | |
|---|---|
Manufacturer | Woods |
Front-mount mower | |
Woods 6250 Engine | |
|---|---|
25HP Kubota 740cc 3-cyl gasoline | |
Fuel tank | 4 gal
15.1 L |
8 galOptOptional
30.3 L | |
Engine details ...  | |
Woods 6250 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Weight | 775 lbs
351 kg |
Front tire | 20x10.00-8 |
Rear tire | 13x5.00-6 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Mow'n Machine Zero Turning Radius Riding Mower published in 1997, by Woods |
Engine
Engine Detail — 740 cc / 45.2 ci Gasoline
Manufacturer | Kubota WG750B |
Fuel Type | Gasoline |
Configuration | 3-cylinder, liquid-cooled horizontal-shaft inline |
Displacement | 740 cc
45.2 ci |
Bore/Stroke | 2.68x2.68 inches
68 x 68 mm |
Power (gross) | 25 hp
18.6 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — infinite forward and reverse hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
Woods 6250 Tires | |
|---|---|
Lawn/turf front | 20x10.00-8 |
Lawn/turf rear | 13x5.00-6 |
Dimensions | |
|---|---|
Length | 113 inches
287 cm |
Height | 45 inches
114 cm |
Weight | 775 lbs
351 kg |
Attachments
Attachment overview | |
|---|---|
48" front-mount mower deck | |
52" front-mount mower deck | |
61" front-mount mower deck | |
Snowblower | |
Blade |
Photos

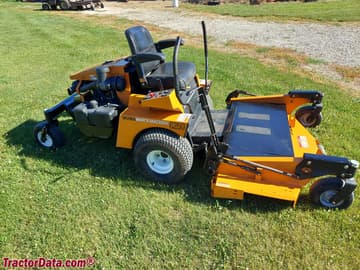

Woods 6250
Recommended Implements & Sizing Guide
Engineering recommendations for Woods Lawn Tractors Woods 6250 based on its 25 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Woods Lawn Tractors Woods 6250.
Estimated Continuous Field Runtime: 3.1 hrs
Approximately 3.1 hours of continuous field operation at ~75% rated power on a full tank (4 gal / 15.1 L).
Estimated 75% Load Fuel Burn~1.3 gal/hr (4.9 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Woods Lawn Tractors Woods 6250 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Woods Lawn Tractors Woods 6250.
Converted Equivalents:
Horsepower (HP)25 hp
Kilowatts (kW)18.6 kW
Metric Horsepower (PS / CV)25.3 PS
