Woods M2050
The Woods M2050 is a tractor produced by Woods Lawn Tractors. The listed engine power is Gasoline (gross): 20 hp / 14.9 kW. Transmission: infinite forward and reverse. Operating weight: 997 lbs 452 kg.
Engine Power
Gasoline (gross): 20 hp / 14.9 kW
Fuel & Capacities
11 gal
41.6 L
Transmission
infinite forward and reverse
Operating Weight
997 lbs
452 kg
Overview
 | 2001 - 2005
M SeriesZero-turn mowerAriens built
M Series
Zero-turn mower
Ariens built |
|---|
Production | |
|---|---|
Distributor | Woods |
Manufacturer | Ariens |
Zero-turn mower | |
Woods M2050 Engine | |
|---|---|
20HP Vanguard 2-cyl gasoline | |
Fuel tank | 11 gal
41.6 L |
Engine details ...  | |
Woods M2050 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Weight | 997 lbs
452 kg |
Front tire | 15x5-6 |
Rear tire | 23x8.5-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Dare To Compare M-Series published in 2003, by Woods |
Engine
Engine Detail — Gasoline
Manufacturer | Vanguard |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Power (gross) | 20 hp
14.9 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — infinite forward and reverse hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
Woods M2050 Tires | |
|---|---|
Lawn/turf front | 15x5-6 |
Lawn/turf rear | 23x8.5-12 |
Dimensions | |
|---|---|
Length | 86 inches
218 cm |
Width | 50 inches
127 cm |
Height | 60 inches
152 cm |
Weight | 997 lbs
452 kg |
Attachments
50" Mower deck | |
|---|---|
Type | mid-mount Woods |
3-blade | |
Cutting width | 50 inches
127 cm |
Cut height | 1.5 to 5 inch
3 to 12 cm |
Photos

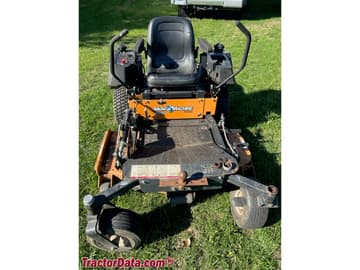

Woods M2050
Recommended Implements & Sizing Guide
Engineering recommendations for Woods Lawn Tractors Woods M2050 based on its 20 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Woods Lawn Tractors Woods M2050.
Estimated Continuous Field Runtime: 10.6 hrs
Approximately 10.6 hours of continuous field operation at ~75% rated power on a full tank (11 gal / 41.6 L).
Estimated 75% Load Fuel Burn~1 gal/hr (3.9 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Woods Lawn Tractors Woods M2050 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Woods Lawn Tractors Woods M2050.
Converted Equivalents:
Horsepower (HP)20 hp
Kilowatts (kW)14.9 kW
Metric Horsepower (PS / CV)20.3 PS
