XTZ XTZ-246K

The XTZ XTZ-246K is a tractor produced by Xtz. It is equipped with a 436 ci 7.1 L engine. The listed engine power is Diesel (listed): 240 hp / 179.0 kW. Transmission: 16 forward and 8 reverse. Operating weight: 18629 lbs 8450 kg.

Engine Power
Diesel (listed): 240 hp / 179.0 kW
Fuel & Capacities
113.6 gal 430.0 L
Transmission
16 forward and 8 reverse
Operating Weight
18629 lbs 8450 kg

Overview

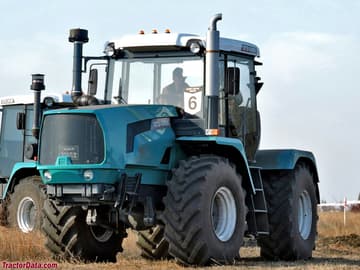

XTZ XTZ-246K tractor photo
2015 - Four-wheel Drive (4WD) tractor
2015 -
Four-wheel Drive (4WD) tractor
Production
Manufacturer
XTZ
Four-wheel Drive (4WD) tractor
Built in Kharkiv, Ukraine
XTZ XTZ-246K Engine
Volvo-Penta 7.1L 6-cyl diesel
Fuel tank
113.6 gal 430.0 L
Engine details ...
XTZ XTZ-246K Transmission
16-speed
Transmission details ...
XTZ XTZ-246K Power
Engine
240 hp 179.0 kW
Mechanical
Four-wheel drive
Articulated power steering
Cab standard with air-conditioning.
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540/1000
Dimensions & Tires
Wheelbase
112.6 inches 286 cm
Weight
18629 lbs 8450 kg
Front tire
23.1R26
Rear tire
23.1R26
Full dimensions and tires ...

Engine

Engine Detail — 436 ci / 7.1 L Diesel

Manufacturer
Volvo-Penta TAD721VE
Fuel Type
Diesel
Configuration
6-cylinder, liquid-cooled
Displacement
436 ci 7.1 L
Bore/Stroke
4.25x5.12 inches 108 x 130 mm
Power
240 hp 179.0 kW
Starter type
electric

Transmission

Transmission — 16 forward and 8 reverse

Gears
16 forward and 8 reverse
Clutch
dry disc

Dimensions

XTZ XTZ-246K Tires
Ag front
23.1R26
Ag rear
23.1R26
Dimensions
Wheelbase
112.6 inches 286 cm
Length
252 inches 640 cm
Width
96.9 inches 246 cm
Height (exhaust)
136.2 inches 345 cm
Weight
18629 lbs 8450 kg
Ground clearance
17.7 inches 44 cm
Front tread
73.2 inches 185 cm
Rear tread
73.2 inches 185 cm

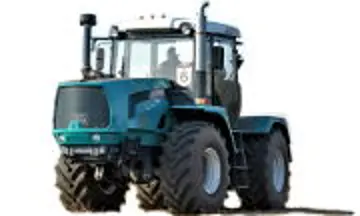

Photos

XTZ XTZ-246K

XTZ XTZ-246K

Recommended Implements & Sizing Guide

Engineering recommendations for Xtz XTZ-246K based on its 240 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁Commercial / Field ScaleHigh horsepower articulated/4WD field plowing.
Rotary Cutter / MowerMowing & Clearing
15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼Commercial / Field ScaleLarge commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep
90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机Commercial / Field ScaleDeep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage
24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙Commercial / Field ScaleBroad-acre grain tillage for high-drawbar tractors.
Hay BalerHay & Forage
Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)Commercial / Field ScaleHigh-capacity commercial forage harvesting (1000 RPM PTO).
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Xtz XTZ-246K.

Estimated Continuous Field Runtime: 9.1 hrs

Approximately 9.1 hours of continuous field operation at ~75% rated power on a full tank (113.6 gal / 430 L).

Estimated 75% Load Fuel Burn~12.5 gal/hr (47.2 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Xtz XTZ-246K Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Xtz XTZ-246K.

Converted Equivalents:

Horsepower (HP)240 hp
Kilowatts (kW)179 kW
Metric Horsepower (PS / CV)243.3 PS

Direct Competitor Comparison

Compare XTZ XTZ-246K against same-era industry alternatives in the same horsepower class.

Current Model
Xtz

XTZ XTZ-246K

Engine Power:Diesel (listed): 240 hp / 179.0 kW
★ Baseline Reference
FendtMarket Competitor

Fendt 822 Vario

Engine Power:216
Production Years:2010 - 2020
CaseIHMarket Competitor

CaseIH 7140

Engine Power:216.7
Production Years:1987 - 1993
Massey FergusonMarket Competitor

Massey Ferguson 6360

Engine Power:220
Production Years:2004 - 2009
DeereMarket Competitor

Deere 7930

Engine Power:220
Production Years:2007 - 2011
