XTZ XTZ-16131

The XTZ XTZ-16131 is a tractor produced by Xtz. It is equipped with a 436.1 ci 7.1 L engine. The listed engine power is Diesel (listed): 210 hp / 156.6 kW; Diesel (listed): 180 hp / 134.2 kW. Transmission: 16 forward and 8 reverse. Operating weight: 19000 lbs 8618 kg.

Overview

	Four-wheel Drive (4WD) tractor	Four-wheel Drive (4WD) tractor

Production
Manufacturer	XTZ
Four-wheel Drive (4WD) tractor
Built in Kharkiv, Ukraine

XTZ XTZ-16131 Transmission
16-speed
Transmission details ...

XTZ XTZ-16131 Power
Engine	210 hp 156.6 kW

Mechanical
Four-wheel drive
Articulated power steering
Cab standard.

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000
Front PTO Type	1000

Dimensions & Tires
Wheelbase	112.6 inches 286 cm
Weight	19000 lbs 8618 kg
Front tire	16.9R38
Rear tire	16.9R38
Full dimensions and tires ...

Engine

Engine options
MMZ 7.1L 6-cyl diesel
Deutz 7.1L 6-cyl diesel

Engine Detail — 434.5 ci / 7.1 L Diesel

Manufacturer	MMZ D-260
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled inline
Displacement	434.5 ci 7.1 L
Bore/Stroke	4.331x4.921 inches 110 x 125 mm
Power	210 hp 156.6 kW
Rated RPM	2100
Starter type	electric

Engine Detail — 436.1 ci / 7.1 L Diesel

Manufacturer	Deutz BF6M1013E
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	436.1 ci 7.1 L
Bore/Stroke	4.252x5.118 inches 108 x 130 mm
Power	180 hp 134.2 kW
Starter type	electric

Transmission

Transmission — 16 forward and 8 reverse

Gears	16 forward and 8 reverse
Clutch	dry disc

Dimensions

XTZ XTZ-16131 Tires
Ag front	16.9R38
Ag rear	16.9R38

Dimensions
Wheelbase	112.6 inches 286 cm
Length	261.6 inches 664 cm
Width	97.6 inches 247 cm
Height (exhaust)	133.1 inches 338 cm
Weight	19000 lbs 8618 kg
Ground clearance	19.9 inches 50 cm
Front tread	80.7 inches 204 cm
Rear tread	80.7 inches 204 cm

Photos

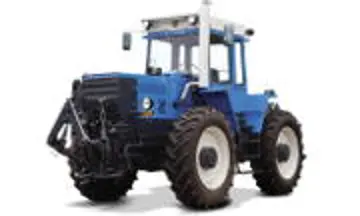

XTZ XTZ-16131 tractor photo
