XTZ XTZ-240K

The XTZ XTZ-240K is a tractor produced by Xtz. It is equipped with a 434.5 ci 7.1 L engine. The listed engine power is Diesel (listed): 240 hp / 179.0 kW; Diesel (listed): 210 hp / 156.6 kW. Transmission: 16 forward and 8 reverse. Operating weight: 18450 lbs (MMZ engine) 8368 kg.

Overview

	Four-wheel Drive (4WD) tractor	Four-wheel Drive (4WD) tractor

Production
Manufacturer	XTZ
Four-wheel Drive (4WD) tractor
Built in Kharkiv, Ukraine

XTZ XTZ-240K Transmission
16-speed
Transmission details ...

XTZ XTZ-240K Power
Engine	240 hp 179.0 kW

Mechanical
Four-wheel drive
Articulated power steering
Cab standard with air-conditioning.

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	112.6 inches 286 cm
Weight	18450 to 19640 pounds
Front tire	23.1R26
Rear tire	23.1R26
Full dimensions and tires ...

Engine

Engine options
YaMZ 14.9L 8-cyl diesel
MMZ 7.1L 6-cyl diesel

Engine Detail — 906.8 ci / 14.9 L Diesel

Manufacturer	YaMZ 238
Fuel Type	Diesel
Configuration	8-cylinder, liquid-cooled
Displacement	906.8 ci 14.9 L
Bore/Stroke	5.12x5.51 inches 130 x 140 mm
Power	240 hp 179.0 kW
Starter type	electric

Engine Detail — 434.5 ci / 7.1 L Diesel

Manufacturer	MMZ D-260
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	434.5 ci 7.1 L
Bore/Stroke	4.331x4.921 inches 110 x 125 mm
Power	210 hp 156.6 kW
Starter type	electric

Transmission

Transmission — 16 forward and 8 reverse

Gears	16 forward and 8 reverse
Clutch	dry disc

Dimensions

XTZ XTZ-240K Tires
Ag front	23.1R26
Ag rear	23.1R26

Dimensions
Wheelbase	112.6 inches 286 cm
Length	252 inches 640 cm
Width	96.9 inches 246 cm
Height (exhaust)	136.2 inches 345 cm
Weight	18450 lbs (MMZ engine) 8368 kg
	19640 lbs (YaMZ engine) 8908 kg
Ground clearance	17.7 inches 44 cm
Front tread	73.2 inches 185 cm
Rear tread	73.2 inches 185 cm

Photos

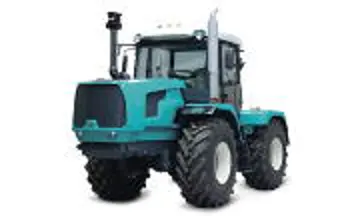

XTZ XTZ-240K tractor photo
