XTZ XTZ-3512

The XTZ XTZ-3512 is a tractor produced by Xtz. It is equipped with a 97.6 ci 1.6 L engine. The listed engine power is Diesel (listed): 35 hp / 26.1 kW. Transmission: 8 forward and 6 reverse. Operating weight: 4960 lbs 2249 kg.

Engine Power
Diesel (listed): 35 hp / 26.1 kW
Fuel & Capacities
13.2 gal 50.0 L
Transmission
8 forward and 6 reverse
Operating Weight
4960 lbs 2249 kg

Overview

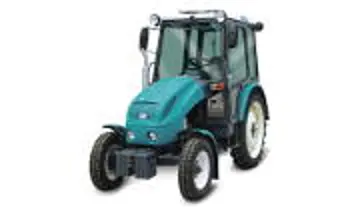

XTZ XTZ-3512 tractor photo
Compact Utility tractor
Compact Utility tractor
Production
Manufacturer
XTZ
Compact Utility tractor
Built in Kharkiv, Ukraine
XTZ XTZ-3512 Engine
MMZ 1.6L 3-cyl diesel
Fuel tank
13.2 gal 50.0 L
Engine details ...
XTZ XTZ-3512 Transmission
8-speed
Transmission details ...
XTZ XTZ-3512 Power
Engine
35 hp 26.1 kW
Mechanical
Two-wheel drive
Cab standard with heater.
Power Take-off (PTO)
Rear PTO Type
540
Dimensions & Tires
Wheelbase
73.3 inches 186 cm
Weight
4960 lbs 2249 kg
Front tire
6.5R16
Rear tire
9.5R32
Full dimensions and tires ...

Engine

Engine Detail — 97.6 ci / 1.6 L Diesel

Manufacturer
MMZ 3LD
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
97.6 ci 1.6 L
Bore/Stroke
3.425x3.543 inches 87 x 90 mm
Power
35 hp 26.1 kW
Starter type
electric

Transmission

Transmission — 8 forward and 6 reverse

Gears
8 forward and 6 reverse
Clutch
dry disc

Dimensions

XTZ XTZ-3512 Tires
Ag front
6.5R16
Ag rear
9.5R32
Dimensions
Wheelbase
73.3 inches 186 cm
Length
137.8 inches 350 cm
Width
55.9 inches 141 cm
Height (cab)
98.3 inches 249 cm
Weight
4960 lbs 2249 kg
Ground clearance
10.9 inches 27 cm
Front tread
47.2 to 55.1 inches 119 to 139 cm
Rear tread
43.3 to 59.1 inches 109 to 150 cm

Photos

XTZ XTZ-3512 tractor photo

XTZ XTZ-3512 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Xtz XTZ-3512 based on its 35 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm)Medium DutyStandard utility farm tillage.
Rotary Cutter / MowerMowing & Clearing
5 ft (60 in)1.5 mMedium DutyPasture maintenance and weeds up to 1.5" diameter.
Rotary TillerSeedbed Prep
54 to 60 in135 - 150 cmMedium DutyThorough seedbed preparation in orchards and vegetable plots.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Hay BalerHay & Forage
Small Square Baler (14x18")小方捆打捆机 (36x46 cm)Medium DutyClassic 2-string baler for horse and small livestock hay.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Xtz XTZ-3512.

Estimated Continuous Field Runtime: 7.3 hrs

Approximately 7.3 hours of continuous field operation at ~75% rated power on a full tank (13.2 gal / 50 L).

Estimated 75% Load Fuel Burn~1.8 gal/hr (6.9 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Xtz XTZ-3512 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Xtz XTZ-3512.

Converted Equivalents:

Horsepower (HP)35 hp
Kilowatts (kW)26.1 kW
Metric Horsepower (PS / CV)35.5 PS

Direct Competitor Comparison

Compare XTZ XTZ-3512 against same-era industry alternatives in the same horsepower class.

Current Model
Xtz

XTZ XTZ-3512

Engine Power:Diesel (listed): 35 hp / 26.1 kW
★ Baseline Reference
DeereMarket Competitor

Deere 420

Engine Power:31.5
Production Years:1956 - 1958
KubotaMarket Competitor

Kubota GL32

Engine Power:31.6
Production Years:1990 - 1992
Massey FergusonMarket Competitor

Massey Ferguson 1040

Engine Power:32
Production Years:1984 - 1986
Massey-HarrisMarket Competitor

Massey-Harris 21 Colt

Engine Power:31.5
Production Years:1952 - 1953
