Yanmar AC-16

The Yanmar AC-16 is a tractor produced by Yanmar. It is equipped with a 47.8 ci 0.8 L engine. The listed engine power is Diesel (listed): 15.5 hp / 11.6 kW. Drive type: crawler. Operating weight: 1775 lbs 805 kg.

Engine Power
Diesel (listed): 15.5 hp / 11.6 kW
Drive & Traction
crawler
Fuel & Capacities
5.3 gal 20.1 L
Operating Weight
1775 lbs 805 kg

Overview

Yanmar AC-16 tractor photo
2004 - 2007 AC SeriesAgricultural Crawler tractor AC Series Agricultural Crawler tractor
Production
Manufacturer
Yanmar
Agricultural Crawler tractor
Yanmar AC-16 Engine
Yanmar 0.8L 3-cyl diesel
Fuel tank
5.3 gal 20.1 L
Engine details ...
Yanmar AC-16 Transmission
hydrostatic
Transmission details ...
Yanmar AC-16 Power
Engine
15.5 hp 11.6 kW
Mechanical
Drive
crawler
Two-post ROPS.
Dimensions & Tracks
Weight
1775 lbs 805 kg
Tracks
Full dimensions and tracks ...
Electrical
Ground
negative
Battery volts
12

Engine

Engine Detail — 47.8 ci / 0.8 L Diesel

Manufacturer
Yanmar 3TNE68
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
47.8 ci 0.8 L
Bore/Stroke
2.68x2.83 inches 68 x 72 mm
Power
15.5 hp 11.6 kW
Starter
electric
Starter volts
12

Transmission

Transmission — hydrostatic

Type
hydrostatic

Dimensions

Yanmar AC-16 Tracks
Dimensions
Length
92.1 inches 233 cm
Width
47.2 inches 119 cm
Height
71.9 inches 182 cm
Weight
1775 lbs 805 kg
Ground clearance
12.6 inches 32 cm

Photos

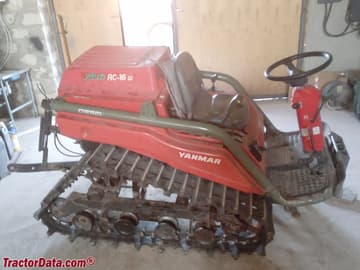

Yanmar AC-16

Yanmar AC-16

Recommended Implements & Sizing Guide

Engineering recommendations for Yanmar AC-16 based on its 15.5 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Yanmar AC-16.

Estimated Continuous Field Runtime: 6.6 hrs

Approximately 6.6 hours of continuous field operation at ~75% rated power on a full tank (5.3 gal / 20.1 L).

Estimated 75% Load Fuel Burn~0.8 gal/hr (3.1 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Yanmar AC-16 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Yanmar AC-16.

Converted Equivalents:

Horsepower (HP)15.5 hp
Kilowatts (kW)11.6 kW
Metric Horsepower (PS / CV)15.7 PS
