Yanmar EF324
The Yanmar EF324 is a tractor produced by Yanmar. It is equipped with a 91.3 ci 1.5 L engine. The listed engine power is Diesel (listed): 23.7 hp / 17.7 kW. Transmission: 16 forward and reverse. Operating weight: 2756 to 3153 pounds.
Engine Power
Diesel (listed): 23.7 hp / 17.7 kW
Fuel & Capacities
7.1 gal
26.9 L
Transmission
16 forward and reverse
Operating Weight
2756 to 3153 pounds
Overview
 | 2002 - 2004
EF300 SeriesCompact Utility tractor
EF300 Series
Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Yanmar |
Compact Utility tractor | |
Variants | |
|---|---|
EF324Q | Cab |
Yanmar EF324 Engine | |
|---|---|
Yanmar 1.5L 3-cyl diesel | |
Fuel tank | 7.1 gal
26.9 L |
Engine details ...  | |
Yanmar EF324 Transmission | |
|---|---|
16-speed four-speed power shift | |
Transmission details ...  |
Yanmar EF324 Power | |
|---|---|
Engine | 23.7 hp
17.7 kW |
Mechanical | |
|---|---|
Four-wheel drive |
Tractor hitch | |
|---|---|
Rear Type | JIS1 |
Rear lift | 3086 lbs
1399 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | 540 (1.375) |
Engine RPM | 568@2500 |
784@2500 | |
991@2500 | |
1296@2500 | |
-623@2500 | |
Dimensions & Tires | |
|---|---|
ROPS Wheelbase | 60.6 inches
153 cm |
Cab Wheelbase | 63.6 inches
161 cm |
Weight | 2756 to 3153 pounds |
Front tire | 7-14 |
Rear tire | 9.5-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
EF300 Series (41812-011884) published in 2004 |
Engine
Engine Detail — 91.3 ci / 1.5 L Diesel
Manufacturer | Yanmar 3TNV84 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 91.3 ci
1.5 L |
Bore/Stroke | 3.31x3.54 inches
84 x 90 mm |
Power | 23.7 hp
17.7 kW |
Rated RPM | 2500 |
Starter | electric |
Starter volts | 12 |
Transmission

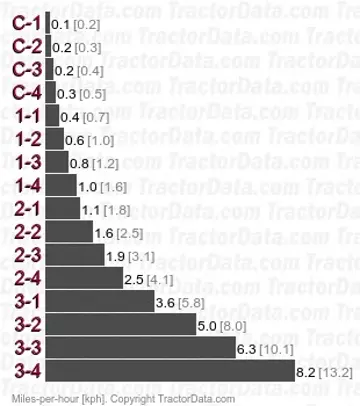

Transmission — 16 forward and reverse four-speed power shift
Type | four-speed power shift |
Gears | 16 forward and reverse |
Four power shift gears in four ranges, with shuttle. | |
 | |
Dimensions
Yanmar EF324 Tires | |
|---|---|
Standard tires (ag) | Front: 7-14. Rear: 9.5-24 |
Dimensions | |
|---|---|
ROPS Wheelbase | 60.6 inches
153 cm |
Cab Wheelbase | 63.6 inches
161 cm |
ROPS Length | 113.4 inches
288 cm |
Cab Length | 117.5 inches
298 cm |
ROPS Width | 53.5 inches
135 cm |
Cab Width | 54.7 inches
138 cm |
Height (ROPS) | 78 inches
198 cm |
Height (cab) | 78.4 inches
199 cm |
ROPS Weight | 2756 lbs
1250 kg |
Cab Weight | 3153 lbs
1430 kg |
Ground clearance | 13 inches
33 cm |
Front tread | 39.4 inches
100 cm |
Rear tread | 38.8/43.5 inches
98/110 cm |
Recommended Implements & Sizing Guide
Engineering recommendations for Yanmar EF324 based on its 23.7 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Yanmar EF324.
Estimated Continuous Field Runtime: 5.8 hrs
Approximately 5.8 hours of continuous field operation at ~75% rated power on a full tank (7.1 gal / 26.9 L).
Estimated 75% Load Fuel Burn~1.2 gal/hr (4.7 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Yanmar EF324 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Yanmar EF324.
Converted Equivalents:
Horsepower (HP)23.7 hp
Kilowatts (kW)17.7 kW
Metric Horsepower (PS / CV)24 PS
Direct Competitor Comparison
Compare Yanmar EF324 against same-era industry alternatives in the same horsepower class.
Current Model
Yanmar
Yanmar EF324
Engine Power:Diesel (listed): 23.7 hp / 17.7 kW
★ Baseline Reference
