Yanmar EF328

The Yanmar EF328 is a tractor produced by Yanmar. It is equipped with a 91.3 ci 1.5 L engine. The rated power output is 27.6 hp 20.6 kW. Transmission: 16 forward and reverse. Operating weight: 2976 to 3395 pounds.

Overview

	2002 - 2004 EF300 SeriesCompact Utility tractor
2002 - 2004
EF300 Series
Compact Utility tractor

Production
Manufacturer	Yanmar
Compact Utility tractor

Variants
EF328	ROPS
EF328Q	Cab
EF328J	High-speed ROPS
EF328JQ	high-speed cab

Yanmar EF328 Engine
Yanmar 1.5L 3-cyl diesel
Fuel tank	9.5 gal 36.0 L
Engine details ...

Yanmar EF328 Transmission
16-speed four-speed power shift
Transmission details ...

Yanmar EF328 Power
Engine	27.6 hp 20.6 kW

Mechanical
Four-wheel drive

Tractor hitch
Rear Type	JIS1
Rear lift	3307 lbs 1500 kg

Power Take-off (PTO)
Rear PTO	540 (1.375)
Engine RPM	547@2600
	755@2600
	955@2600
	1248@2600
	-600@2600

Dimensions & Tires
Wheelbase	64.6 inches 164 cm
Weight	2976 to 3395 pounds
Front tire	7-16
Rear tire	12.4-24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
EF300 Series (41812-011884) published in 2004

Engine

Engine Detail — 91.3 ci / 1.5 L Diesel

Manufacturer	Yanmar 3TNV84
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	91.3 ci 1.5 L
Bore/Stroke	3.31x3.54 inches 84 x 90 mm
Power	27.6 hp 20.6 kW
Rated RPM	2600
Starter	electric
Starter volts	12

Transmission

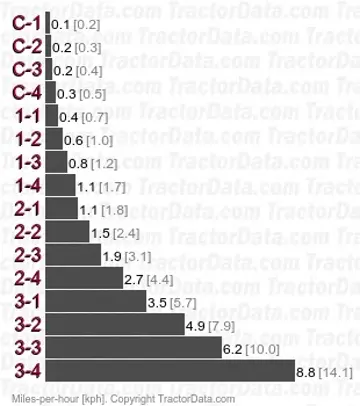

Transmission — 16 forward and reverse four-speed power shift

Type	four-speed power shift
Gears	16 forward and reverse
Four power shift gears in four ranges, with shuttle.

Dimensions

Yanmar EF328 Tires
Standard tires (ag)	Front: 7-16. Rear: 12.4-24

Dimensions
Wheelbase	64.6 inches 164 cm
Length	120.7 inches 306 cm
Width	55.7 inches 141 cm
Height (ROPS)	77.6 inches 197 cm
Height (cab)	78.5 inches 199 cm
ROPS Weight	2976 lbs 1349 kg
Cab Weight	3395 lbs 1539 kg
Ground clearance	12.4 inches 31 cm
Front tread	43.3 inches 109 cm
Rear tread	43.9 to 55.7 inches 111 to 141 cm
