Yanmar EF330

The Yanmar EF330 is a tractor produced by Yanmar. It is equipped with a 91.3 ci 1.5 L engine. The rated power output is 29.6 hp 22.1 kW. Transmission: 16 forward and reverse. Operating weight: 3230 to 3571 pounds.

Overview

	2002 - 2004 EF300 SeriesCompact Utility tractor
2002 - 2004
EF300 Series
Compact Utility tractor

Production
Manufacturer	Yanmar
Compact Utility tractor

Variants
EF330	ROPS
EF330Q	Cab
EF330J	High-speed ROPS
EF330JQ	high-speed cab

Yanmar EF330 Engine
Yanmar 1.5L 3-cyl diesel
Fuel tank	9.5 gal 36.0 L
Engine details ...

Yanmar EF330 Transmission
16-speed four-speed power shift
Transmission details ...

Yanmar EF330 Power
Engine	29.6 hp 22.1 kW

Mechanical
Four-wheel drive

Tractor hitch
Rear Type	JIS1
Rear lift	3307 lbs 1500 kg

Power Take-off (PTO)
Rear PTO	540 (1.375)
Engine RPM	568@2700
	784@2700
	991@2700
	1296@2700
	-623@2700

Dimensions & Tires
Wheelbase	70.9 inches 180 cm
Weight	3230 to 3571 pounds
Front tire	8-16
Rear tire	12.4-26
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
EF300 Series (41812-011884) published in 2004

Engine

Engine Detail — 91.3 ci / 1.5 L Diesel

Manufacturer	Yanmar 3TNV84
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	91.3 ci 1.5 L
Bore/Stroke	3.31x3.54 inches 84 x 90 mm
Power	29.6 hp 22.1 kW
Rated RPM	2700
Starter	electric
Starter volts	12

Transmission

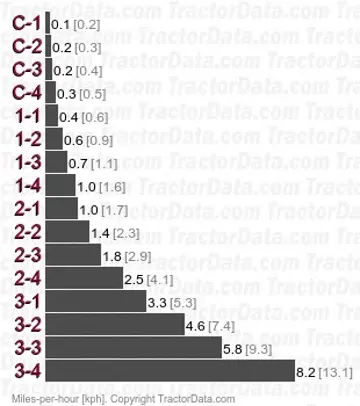

Transmission — 16 forward and reverse four-speed power shift

Type	four-speed power shift
Gears	16 forward and reverse
Four power shift gears in four ranges, with shuttle.

Dimensions

Yanmar EF330 Tires
Standard tires (ag)	Front: 8-16. Rear: 12.4-26

Dimensions
Wheelbase	70.9 inches 180 cm
Length	125.2 inches 318 cm
Width	57.9 inches 147 cm
Height (ROPS)	76.2 inches 193 cm
Height (cab)	77.6 inches 197 cm
ROPS Weight	3230 lbs 1465 kg
Cab Weight	3571 lbs 1619 kg
Ground clearance	12.6 inches 32 cm
Front tread	47.8 inches 121 cm
Rear tread	45.3 to 54.7 inches 115 to 138 cm
