Yanmar EF342J
The Yanmar EF342J is a tractor produced by Yanmar. It is equipped with a 133.6 ci 2.2 L engine. The rated power output is 41.4 hp 30.9 kW. Transmission: 20 forward and reverse. Operating weight: 3483 to 3814 pounds.
Engine Power
41.4 hp
30.9 kW
Fuel & Capacities
9.5 gal
36.0 L
Transmission
20 forward and reverse
Operating Weight
3483 to 3814 pounds
Yanmar EF342J Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2002 - 2004
EF300 SeriesCompact Utility tractor |
|---|---|
2002 - 2004 | |
EF300 Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Yanmar |
Compact Utility tractor | |
Variants | |
|---|---|
EF342Q | Cab |
Yanmar EF342J Engine | |
|---|---|
Yanmar 2.2L 4-cyl diesel | |
Fuel tank | 9.5 gal
36.0 L |
Engine details ...  | |
Yanmar EF342J Transmission | |
|---|---|
20-speed four-speed power shift | |
Transmission details ...  |
Yanmar EF342J Power | |
|---|---|
Engine | 41.4 hp
30.9 kW |
Mechanical | |
|---|---|
Four-wheel drive |
Tractor hitch | |
|---|---|
Rear Type | JIS1 |
Rear lift | 3307 lbs
1500 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | 540 (1.375) |
Engine RPM | 555@2700 |
784@2700 | |
991@2700 | |
1296@2700 | |
-622@2700 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 72.8 inches
184 cm |
Weight | 3483 to 3814 pounds |
Front tire | 8-18 |
Rear tire | 13.6-26 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
EF300 Series (41812-011884) published in 2004 |
Engine
Engine Detail — 133.6 ci / 2.2 L Diesel
Manufacturer | Yanmar 4TNV88 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 133.6 ci
2.2 L |
Bore/Stroke | 3.31x3.54 inches
84 x 90 mm |
Power | 41.4 hp
30.9 kW |
Rated RPM | 2700 |
Starter | electric |
Starter volts | 12 |
Transmission

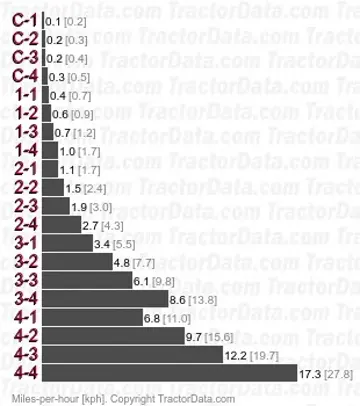

Transmission — 20 forward and reverse four-speed power shift
Type | four-speed power shift |
Gears | 20 forward and reverse |
Four power shift gears in five ranges, with shuttle. | |
 | |
Dimensions
Yanmar EF342J Tires | |
|---|---|
Standard tires (ag) | Front: 8-18. Rear: 13.6-26 |
Dimensions | |
|---|---|
Wheelbase | 72.8 inches
184 cm |
Length | 128.7 inches
326 cm |
Width | 58.5 inches
148 cm |
Height (ROPS) | 92.9 inches
235 cm |
Height (cab) | 84.3 inches
214 cm |
ROPS Weight | 3483 lbs
1579 kg |
Cab Weight | 3814 lbs
1730 kg |
Ground clearance | 13.4 inches
34 cm |
Front tread | 48.4 inches
122 cm |
Rear tread | 45.3 to 59.1 inches
115 to 150 cm |
