Yanmar EF334V
The Yanmar EF334V is a tractor produced by Yanmar. It is equipped with a 100.2 ci 1.6 L engine. The listed engine power is Diesel (listed): 33.5 hp / 25.0 kW. Transmission: 16 forward and reverse. Operating weight: 3263 to 3605 pounds.
Engine Power
Diesel (listed): 33.5 hp / 25.0 kW
Fuel & Capacities
9.5 gal
36.0 L
Transmission
16 forward and reverse
Operating Weight
3263 to 3605 pounds
Overview
 | 2005 - 2009
EF300V SeriesCompact Utility tractor
EF300V Series
Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Yanmar |
Compact Utility tractor | |
Variants | |
|---|---|
EF334V | ROPS |
EF334VQ | Cab |
EF334VJ | ROPS high-speed |
EF334VJQ | Cab high-speed |
Yanmar EF334V Engine | |
|---|---|
Yanmar 1.6L 3-cyl diesel | |
Fuel tank | 9.5 gal
36.0 L |
Engine details ...  | |
Yanmar EF334V Transmission | |
|---|---|
16-speed four-speed power shift | |
Transmission details ...  |
Yanmar EF334V Power | |
|---|---|
Engine | 33.5 hp
25.0 kW |
Mechanical | |
|---|---|
Four-wheel drive |
Tractor hitch | |
|---|---|
Rear Type | JIS1 |
Rear lift | 3307 lbs
1500 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | 540 (1.375) |
Engine RPM | 555@2700 |
784@2700 | |
991@2700 | |
1296@2700 | |
-622@27000 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 70.9 inches
180 cm |
Weight | 3263 to 3605 pounds |
Front tire | 8-16 |
Rear tire | 13.6-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
EF300V Series published in 2005, by Yanmar | |
EF300V Series (0A041-J00501) published in 2009 |
Engine
Engine Detail — 100.2 ci / 1.6 L Diesel
Manufacturer | Yanmar 3TNV88 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 100.2 ci
1.6 L |
Bore/Stroke | 3.46x3.54 inches
88 x 90 mm |
Power | 33.5 hp
25.0 kW |
Rated RPM | 2700 |
Starter | electric |
Starter volts | 12 |
Transmission

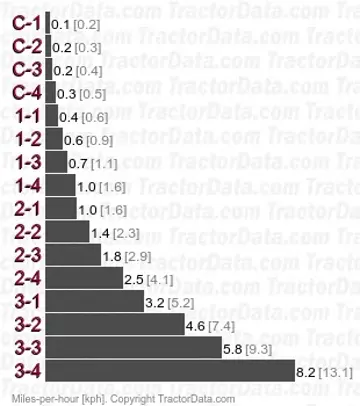

Transmission — 16 forward and reverse four-speed power shift
Type | four-speed power shift |
Gears | 16 forward and reverse |
Four power shift gears in four ranges, with shuttle. | |
 | |
Dimensions
Yanmar EF334V Tires | |
|---|---|
Standard tires (ag) | Front: 8-16. Rear: 13.6-24 |
Dimensions | |
|---|---|
Wheelbase | 70.9 inches
180 cm |
Length | 125.2 inches
318 cm |
Width | 58.3 inches
148 cm |
Height (ROPS) | 76.2 inches
193 cm |
Height (cab) | 77.6 inches
197 cm |
ROPS Weight | 3263 lbs
1480 kg |
Cab Weight | 3605 lbs
1635 kg |
Ground clearance | 12.6 inches
32 cm |
Front tread | 47.8 inches
121 cm |
Rear tread | 45.3 to 56.9 inches
115 to 144 cm |
Recommended Implements & Sizing Guide
Engineering recommendations for Yanmar EF334V based on its 33.5 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Yanmar EF334V.
Estimated Continuous Field Runtime: 5.5 hrs
Approximately 5.5 hours of continuous field operation at ~75% rated power on a full tank (9.5 gal / 36 L).
Estimated 75% Load Fuel Burn~1.7 gal/hr (6.6 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Yanmar EF334V Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Yanmar EF334V.
Converted Equivalents:
Horsepower (HP)33.5 hp
Kilowatts (kW)25 kW
Metric Horsepower (PS / CV)34 PS
