Yard Machines 20
The Yard Machines 20 is a tractor produced by Yard Machines Lawn Tractors. The listed engine power is Gasoline (listed): 20 hp / 14.9 kW. Transmission: infinite forward and reverse.
Overview
 | Lawn tractor | Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Yard Machines (a part of MTD) |
Lawn tractor | |
Model 13AN771H729 | |
Yard Machines 20 Engine | |
|---|---|
20HP Briggs & Stratton 2-cyl gasoline | |
Fuel tank | 1.5 gal
5.7 L |
Engine details ...  | |
Yard Machines 20 Transmission | |
|---|---|
CVT | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Open operator station. | |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Power | 20 hp
14.9 kW |
Starter volts | 12 |

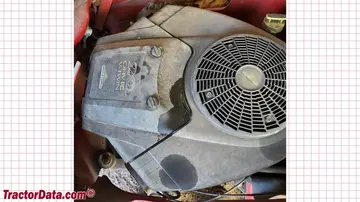

Yard Machines 20 Engine | |
|---|---|
 | |
Image courtesy of Jeremy Dodge |
Transmission
Transmission — infinite forward and reverse belt-driven CVT
Type | belt-driven CVT |
Gears | infinite forward and reverse |
Dimensions
Yard Machines 20 Tires |
|---|
Dimensions |
|---|
Attachments
46" Mower deck | |
|---|---|
Type | mid-mount Yard Machines |
manual lift | |
Cutting width | 46 inches
116 cm |
Photos

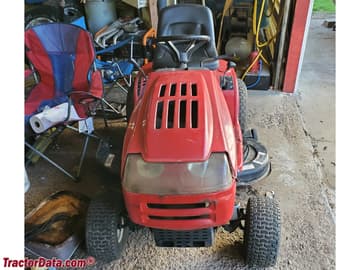

Yard Machines 20

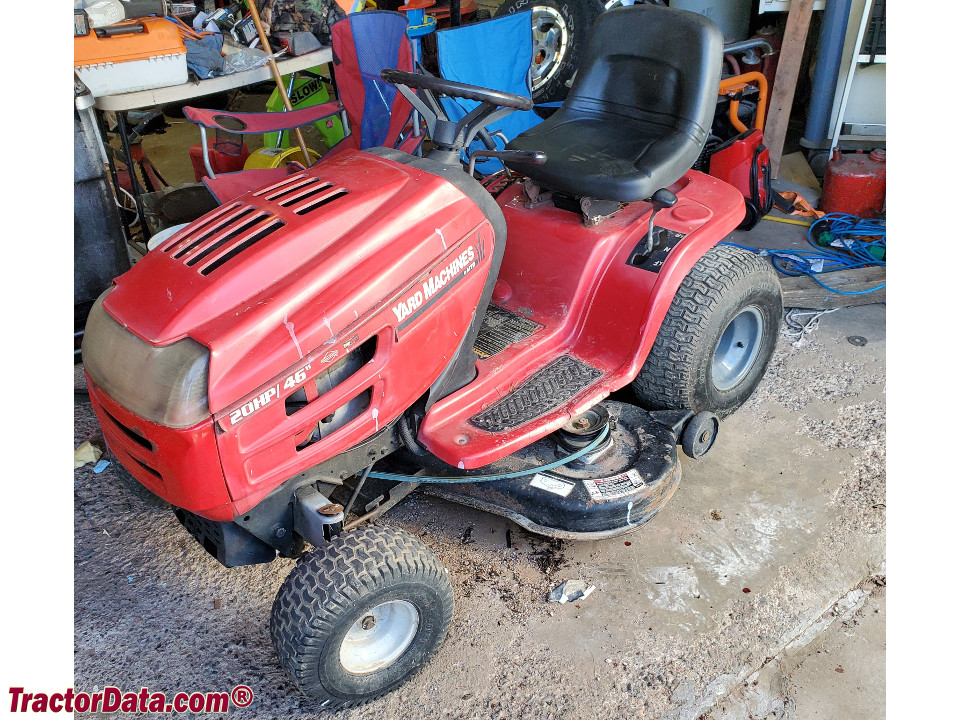

Yard Machines 20
Recommended Implements & Sizing Guide
Engineering recommendations for Yard Machines Lawn Tractors Yard Machines 20 based on its 20 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Yard Machines Lawn Tractors Yard Machines 20.
Estimated Continuous Field Runtime: 1.4 hrs
Approximately 1.4 hours of continuous field operation at ~75% rated power on a full tank (1.5 gal / 5.7 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Yard Machines Lawn Tractors Yard Machines 20 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Yard Machines Lawn Tractors Yard Machines 20.
Converted Equivalents:
Direct Competitor Comparison
Compare Yard Machines 20 against same-era industry alternatives in the same horsepower class.
Yard Machines 20
International Harvester 184 Lo-Boy
