Yard-Man 3380
The Yard-Man 3380 is a tractor produced by Yard Man Lawn Tractors. It is equipped with a 275 cc 16.79 ci engine. The rated power output is 7 hp 5.2 kW. Transmission: Peerless 353.
Engine Power
7 hp
5.2 kW
Fuel & Capacities
Gasoline
Transmission
Peerless 353
Yard Man Lawn Tractors Yard-Man 3380 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1969 - 1972
Lawn tractor |
|---|---|
1969 - 1972 | |
Lawn tractor | |
Production | |
|---|---|
Manufacturer | Yard-Man |
Lawn tractor | |
Built in Jackson, Michigan, USA | |
Variants | |
|---|---|
3380 | manual start |
3390 | electric start |
Yard-Man 3380 Engine | |
|---|---|
7HP Briggs & Stratton 275cc 1-cyl gasoline | |
Engine details ...  |
Yard-Man 3380 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Front tire | 11x4.00-5 |
Rear tire | 14x5.50-6 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Power equipment to serve you every season published in 1970, by Yard-Man | |
Operating Manual Models 3380-1 and 3390-1 (0611-645) published in 1969 |
Engine
Engine Detail — 275 cc / 16.79 ci Gasoline
Manufacturer | Briggs & Stratton 170702 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 275 cc
16.79 ci |
Bore/Stroke | 3.00x2.375 inches
76 x 60 mm |
Power (gross) | 7 hp
5.2 kW |
Starter type | manual recoil |
Transmission
Transmission — Peerless 353
Transmission | Peerless 353 |
Type | belt-driven gear |
Gears | 3 forward and 1 reverse |
Dimensions
Yard-Man 3380 Tires | |
|---|---|
Lawn/turf front | 11x4.00-5 |
Lawn/turf rear | 14x5.50-6 |
Dimensions |
|---|
Attachments
Attachment overview | |
|---|---|
32" mid-mount mower deck | |
Snowblower | |
Blade |
32" Mower deck | |
|---|---|
Type | mid-mount Yard-Man |
2-blade with manual lift | |
Cutting width | 32 inches
81 cm |
Photos

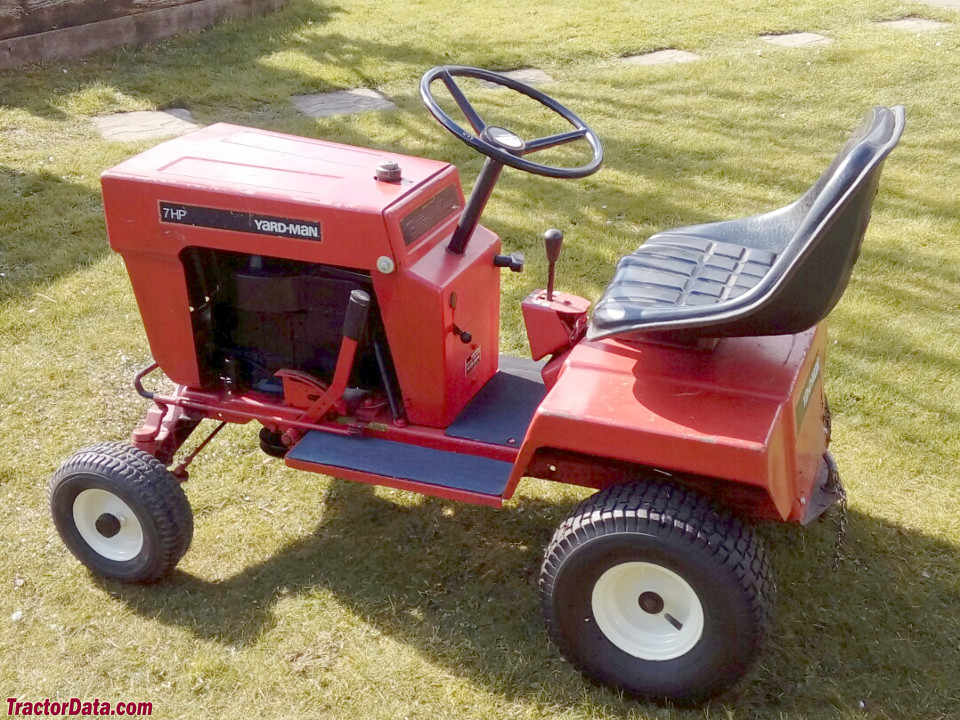

Yard-Man 3380
Yard-Man 3380
