YTO 75
The YTO 75 is a tractor produced by Yto. The listed engine power is Diesel (listed): 69.1 hp / 51.5 kW. Drive type: crawler. Operating weight: 14,330 lbs 6500 kg.
Engine Power
Diesel (listed): 69.1 hp / 51.5 kW
Drive & Traction
crawler
Operating Weight
14,330 lbs
6500 kg
Overview
 | Agricultural Crawler tractor | Agricultural Crawler tractor |
|---|
Production | |
|---|---|
Manufacturer | YTO |
Agricultural Crawler tractor | |
Built in Luoyang, Henan Province, China | |
YTO 75 Engine | |
|---|---|
YTO 4-cyl diesel | |
Engine details ...  |
YTO 75 Power | |
|---|---|
Engine | 69.1 hp
51.5 kW |
Mechanical | |
|---|---|
Drive | crawler |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 |
Dimensions & Tracks | |
|---|---|
Wheelbase | 63.9 inches
162 cm |
Weight | 14,330 lbs
6500 kg |
Tracks | |
Full dimensions and tracks ...  | |
Engine
Engine Detail — Diesel
Manufacturer | YTO 4125A1 |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Power | 69.1 hp
51.5 kW |
Rated RPM | 1500 |
Transmission
Transmission |
|---|
Dimensions
YTO 75 Tracks |
|---|
Dimensions | |
|---|---|
Wheelbase | 63.9 inches
162 cm |
Length | 191.7 inches
486 cm |
Width | 96.9 inches
246 cm |
Height | 95.7 inches
243 cm |
Weight | 14,330 lbs
6500 kg |
Ground clearance | 1.2 inches
3 cm |
Photos

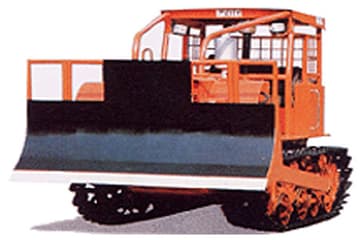

YTO 75
Recommended Implements & Sizing Guide
Engineering recommendations for Yto 75 based on its 69.1 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 7 to 8 ft (84-96 in)2.1 - 2.4 m | Heavy Duty | Heavy-duty twin spindle cutter for overgrown acreage. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Yto 75.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Yto 75 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Yto 75.
Converted Equivalents:
Horsepower (HP)69.1 hp
Kilowatts (kW)51.5 kW
Metric Horsepower (PS / CV)70.1 PS
Direct Competitor Comparison
Compare YTO 75 against same-era industry alternatives in the same horsepower class.
Current Model
Yto
YTO 75
Engine Power:Diesel (listed): 69.1 hp / 51.5 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester B-614
Engine Power:62.5
Production Years:1963 - 1968
