YTO X704
The YTO X704 is a tractor produced by Yto. The rated power output is 69.1 hp 51.5 kW. Transmission: 12 forward and 4 reverse. Operating weight: 9,193 lbs 4169 kg.
Engine Power
69.1 hp
51.5 kW
Fuel & Capacities
Diesel
Transmission
12 forward and 4 reverse
Operating Weight
9,193 lbs
4169 kg
Yto X704 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 |
|---|
Production | |
|---|---|
Manufacturer | YTO |
Built in Luoyang, Henan Province, China | |
Variants | |
|---|---|
X700 | 2WD |
YTO X704 Engine | |
|---|---|
YTO 4-cyl diesel | |
Engine details ...  |
YTO X704 Transmission | |
|---|---|
12-speed | |
Transmission details ...  |
YTO X704 Power | |
|---|---|
Engine | 69.1 hp
51.5 kW |
Mechanical | |
|---|---|
Four-wheel drive |
Tractor hitch | |
|---|---|
Rear lift | 3,473 lbs
1575 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Dimensions & Tires | |
|---|---|
Wheelbase | 91.1 inches
231 cm |
Weight | 9,193 lbs
4169 kg |
Front tire | 11.2-24 |
Rear tire | 16.9-30 |
Full dimensions and tires ...  | |
Engine
Engine Detail — Diesel
Manufacturer | YTO LR4105T73A |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Power | 69.1 hp
51.5 kW |
Rated RPM | 2400 |
Transmission
Transmission — 12 forward and 4 reverse
Gears | 12 forward and 4 reverse |
Dimensions
YTO X704 Tires | |
|---|---|
Ag front | 11.2-24 |
Ag rear | 16.9-30 |
Dimensions | |
|---|---|
Wheelbase | 91.1 inches
231 cm |
Length | 163.4 inches
415 cm |
Width | 84.3 inches
214 cm |
Height | 111.5 inches
283 cm |
Weight | 9,193 lbs
4169 kg |
Ground clearance | 15.0 inches
38 cm |
Photos

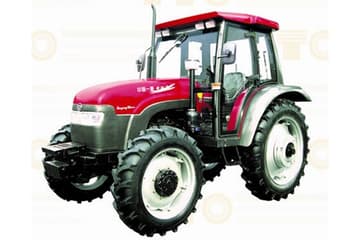

YTO X704
