YTO X754
The YTO X754 is a tractor produced by Yto. The listed engine power is Diesel (listed): 73.8 hp / 55.0 kW. Transmission: 12 forward and 4 reverse. Operating weight: 9,193 lbs 4169 kg.
Engine Power
Diesel (listed): 73.8 hp / 55.0 kW
Fuel & Capacities
Diesel
Transmission
12 forward and 4 reverse
Operating Weight
9,193 lbs
4169 kg
Overview
 |
|---|
Production | |
|---|---|
Manufacturer | YTO |
Built in Luoyang, Henan Province, China | |
Variants | |
|---|---|
X750 | 2WD |
YTO X754 Engine | |
|---|---|
YTO 4-cyl diesel | |
Engine details ...  |
YTO X754 Transmission | |
|---|---|
12-speed | |
Transmission details ...  |
YTO X754 Power | |
|---|---|
Engine | 73.8 hp
55.0 kW |
Mechanical | |
|---|---|
Four-wheel drive |
Tractor hitch | |
|---|---|
Rear lift | 3,597 lbs
1631 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 |
720 | |
1000 | |
540/720 | |
540/1000 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 91.1 inches
231 cm |
Weight | 9,193 lbs
4169 kg |
Front tire | 11.2-24 |
Rear tire | 16.9-30 |
Full dimensions and tires ...  | |
Engine
Engine Detail — Diesel
Manufacturer | YTO LR4105T73A |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Power | 73.8 hp
55.0 kW |
Rated RPM | 2400 |
Transmission
Transmission — 12 forward and 4 reverse
Gears | 12 forward and 4 reverse |
Dimensions
YTO X754 Tires | |
|---|---|
Ag front | 11.2-24 |
Ag rear | 16.9-30 |
Dimensions | |
|---|---|
Wheelbase | 91.1 inches
231 cm |
Length | 163.4 inches
415 cm |
Width | 84.3 inches
214 cm |
Height | 111.5 inches
283 cm |
Weight | 9,193 lbs
4169 kg |
Ground clearance | 16.5 inches
41 cm |
Photos

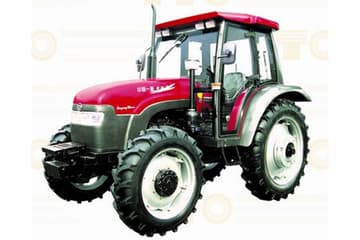

YTO X754
Recommended Implements & Sizing Guide
Engineering recommendations for Yto X754 based on its 73.8 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 7 to 8 ft (84-96 in)2.1 - 2.4 m | Heavy Duty | Heavy-duty twin spindle cutter for overgrown acreage. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Yto X754.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Yto X754 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Yto X754.
Converted Equivalents:
Horsepower (HP)73.8 hp
Kilowatts (kW)55 kW
Metric Horsepower (PS / CV)74.8 PS
