YTO X904
The YTO X904 is a tractor produced by Yto. The listed engine power is Diesel (listed): 89.2 hp / 66.5 kW. Transmission: 12 forward and 4 reverse. Operating weight: 10,050 lbs 4558 kg.
Engine Power
Diesel (listed): 89.2 hp / 66.5 kW
Fuel & Capacities
Diesel
Transmission
12 forward and 4 reverse
Operating Weight
10,050 lbs
4558 kg
Overview
![]() |
|---|
Production | |
|---|---|
Manufacturer | YTO |
Built in Luoyang, Henan Province, China | |
YTO X904 Engine | |
|---|---|
YTO 4-cyl diesel | |
Engine details ... |
YTO X904 Transmission | |
|---|---|
12-speed | |
Transmission details ... |
YTO X904 Power | |
|---|---|
Engine | 89.2 hp
66.5 kW |
Mechanical | |
|---|---|
Four-wheel drive |
Tractor hitch | |
|---|---|
Rear lift | 3,882 lbs
1760 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 720 |
Dimensions & Tires | |
|---|---|
Wheelbase | 91.1 inches
231 cm |
Weight | 10,050 lbs
4558 kg |
Front tire | 13.6-24 |
Rear tire | 16.9-34 |
Full dimensions and tires ... | |
Engine
Engine Detail — Diesel
Manufacturer | YTO LR4105ZT55 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Power | 89.2 hp
66.5 kW |
Rated RPM | 2300 |
Transmission
Transmission — 12 forward and 4 reverse
Gears | 12 forward and 4 reverse |
Dimensions
YTO X904 Tires | |
|---|---|
Ag front | 13.6-24 |
Ag rear | 16.9-34 |
Dimensions | |
|---|---|
Wheelbase | 91.1 inches
231 cm |
Length | 167.7 inches
425 cm |
Width | 83.5 inches
212 cm |
Height | 117.7 inches
298 cm |
Weight | 10,050 lbs
4558 kg |
Ground clearance | 17.3 inches
43 cm |

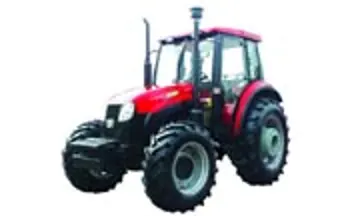

Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Yto X904 based on its 89.2 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 7 to 8 ft (84-96 in)2.1 - 2.4 m | Heavy Duty | Heavy-duty twin spindle cutter for overgrown acreage. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Yto X904.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Yto X904 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Yto X904.
Converted Equivalents:
Horsepower (HP)89.2 hp
Kilowatts (kW)66.5 kW
Metric Horsepower (PS / CV)90.4 PS
Direct Competitor Comparison
Compare YTO X904 against same-era industry alternatives in the same horsepower class.
Current Model
Yto
YTO X904
Engine Power:Diesel (listed): 89.2 hp / 66.5 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 706
Engine Power:80.5
Production Years:1963 - 1967
