YTO 80-90
The YTO 80-90 is a tractor produced by Yto. The listed engine power is Diesel (listed): 78.9 hp / 58.8 kW. Operating weight: 9,634 lbs 4369 kg.
Engine Power
Diesel (listed): 78.9 hp / 58.8 kW
Operating Weight
9,634 lbs
4369 kg
Overview
 |
|---|
Production | |
|---|---|
Manufacturer | YTO |
Built in Luoyang, Henan Province, China | |
YTO 80-90 Engine | |
|---|---|
YTO 4-cyl diesel | |
Engine details ...  |
YTO 80-90 Power | |
|---|---|
Engine | 78.9 hp
58.8 kW |
Mechanical | |
|---|---|
Four-wheel drive |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 91.1 inches
231 cm |
Weight | 9,634 lbs
4369 kg |
Front tire | 11.2-28 |
Rear tire | 13.6-38 |
Full dimensions and tires ...  | |
Engine
Engine Detail — Diesel
Manufacturer | YTO LR4108 |
Configuration | turbo diesel, 4-cylinder, liquid-cooled |
Power | 78.9 hp
58.8 kW |
Rated RPM | 2300 |
Transmission
Transmission |
|---|
Dimensions
YTO 80-90 Tires | |
|---|---|
Ag front | 11.2-28 |
Ag rear | 13.6-38 |
Dimensions | |
|---|---|
Wheelbase | 91.1 inches
231 cm |
Length | 163.8 inches
416 cm |
Width | 85.4 inches
216 cm |
Height | 113.2 inches
287 cm |
Weight | 9,634 lbs
4369 kg |
Ground clearance | 16.5 inches
41 cm |
Photos

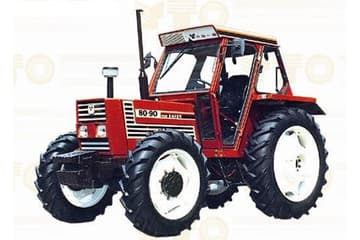

YTO 80-90
Recommended Implements & Sizing Guide
Engineering recommendations for Yto 80-90 based on its 78.9 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 7 to 8 ft (84-96 in)2.1 - 2.4 m | Heavy Duty | Heavy-duty twin spindle cutter for overgrown acreage. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Yto 80-90.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Yto 80-90 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Yto 80-90.
Converted Equivalents:
Horsepower (HP)78.9 hp
Kilowatts (kW)58.8 kW
Metric Horsepower (PS / CV)80 PS
Direct Competitor Comparison
Compare YTO 80-90 against same-era industry alternatives in the same horsepower class.
Current Model
Yto
YTO 80-90
Engine Power:Diesel (listed): 78.9 hp / 58.8 kW
★ Baseline Reference
