Zanello 230C
The Zanello 230C is a tractor produced by Zanello. The listed engine power is Diesel (listed): 117 hp / 87.2 kW. Transmission: 10 forward and 2 reverse.
Engine Power
Diesel (listed): 117 hp / 87.2 kW
Fuel & Capacities
Diesel
Transmission
10 forward and 2 reverse
Overview
 | 1996 - 2001
Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | Zanello |
Row-Crop tractor | |
Built in Argentina | |
Zanello 230C Engine | |
|---|---|
Cummins 6-cyl diesel | |
Engine details ...  |
Zanello 230C Transmission | |
|---|---|
10-speed | |
Transmission details ...  |
Zanello 230C Power | |
|---|---|
Engine | 117 hp
87.2 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Four-post ROPS canopy. |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Engine
Engine Detail — Diesel
Manufacturer | Cummins 6B |
Fuel Type | Diesel |
Configuration | 6-cylinder, liquid-cooled |
Power | 117 hp
87.2 kW |
Starter type | electric |
Transmission
Transmission — 10 forward and 2 reverse
Gears | 10 forward and 2 reverse |
Dimensions
Zanello 230C Tires |
|---|
Dimensions |
|---|
Photos

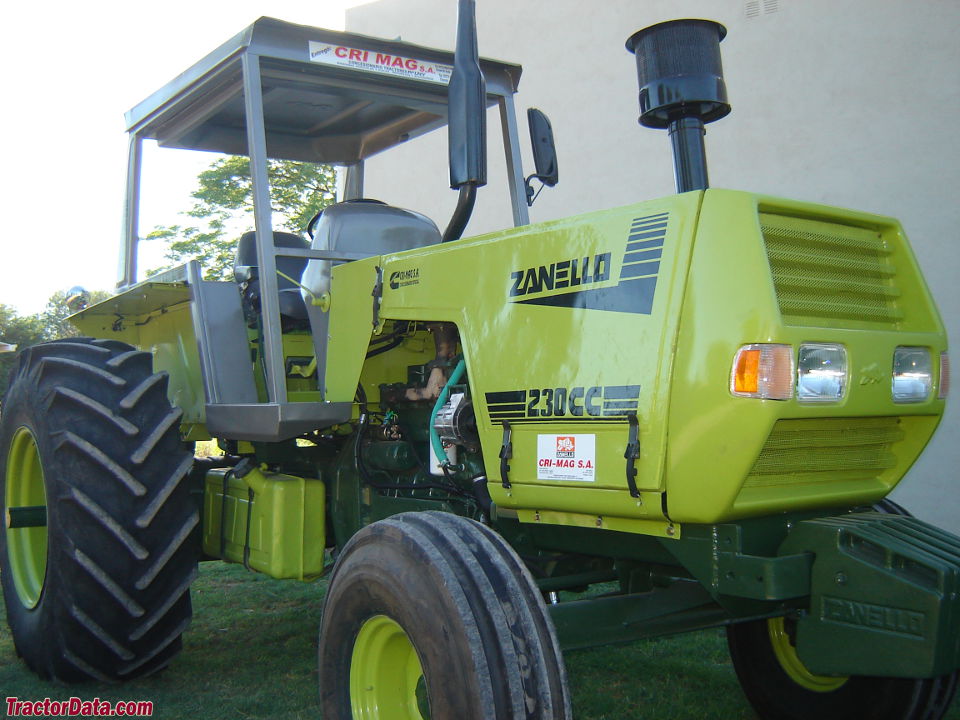

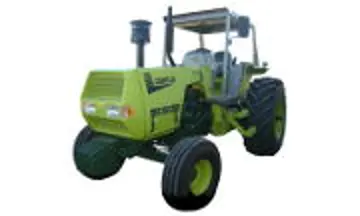

Zanello 230C
Zanello 230C
Recommended Implements & Sizing Guide
Engineering recommendations for Zanello 230C based on its 117 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Zanello 230C.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Zanello 230C Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Zanello 230C.
Converted Equivalents:
Horsepower (HP)117 hp
Kilowatts (kW)87.2 kW
Metric Horsepower (PS / CV)118.6 PS
Direct Competitor Comparison
Compare Zanello 230C against same-era industry alternatives in the same horsepower class.
Current Model
Zanello
Zanello 230C
Engine Power:Diesel (listed): 117 hp / 87.2 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 806
Engine Power:105.5
Production Years:1963 - 1967
