Zetor 16145

The Zetor 16145 is a tractor produced by Zetor. It is equipped with a 417.5 ci 6.8 L engine. The listed engine power is Diesel (listed): 161 hp / 120.1 kW. Transmission: 12 forward and 6 reverse. Operating weight: 11177 lbs 5069 kg.

Overview

	1985 - 1990

Production
Manufacturer	Zetor
Built in Brno, Czechoslovakia
Original price was $36,000 in 1990

Zetor 16145 Engine
Zetor 6.8L 6-cyl diesel
Engine details ...

Zetor 16145 Transmission
12-speed
Transmission details ...

Zetor 16145 Power
Engine	161 hp 120.1 kW
PTO (claimed)	136 hp 101.4 kW

Mechanical
Four-wheel drive
Power steering
Disc brakes
Cab standard.

Capacity
Fuel	51.5 gal 194.9 L
Hydraulic system	42 gal 159.0 L

Hydraulics
Type	open center
Capacity	42 gal 159.0 L
Valves	2
Pump flow	10.8 gpm 40.9 lpm

Tractor hitch
Rear Type	III/II
Rear lift	8650 lbs 3923 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	106.1 inches 269 cm
Weight	11177 lbs 5069 kg
Front tire	14.9/13-24
Rear tire	18.4-38
Full dimensions and tires ...

References
Tractor Model 16145 published by Zetor

Engine

Engine Detail — 417.5 ci / 6.8 L Diesel

Manufacturer	Zetor 8602.1
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	417.5 ci 6.8 L
Bore/Stroke	4.331x4.724 inches 110 x 120 mm
Power	161 hp 120.1 kW
Rated RPM	2200
Starter type	electric
Coolant capacity	24 qts 22.7 L

Transmission

Transmission — 12 forward and 6 reverse

Gears	12 forward and 6 reverse
Clutch	dry disc
Three gears in two ranges, plus reverse range, with two-speed torque multiplier.
With 18.4-38 rear tires.

Dimensions

Zetor 16145 Tires
Ag front	14.9/13-24
Ag rear	18.4-38

Dimensions
Wheelbase	106.1 inches 269 cm
Length	183.7 inches 466 cm
Width	76.8 inches 195 cm
Height (cab)	106.3 inches 270 cm
Weight	11177 lbs 5069 kg
Ground clearance	15.75 inches 40 cm
Front tread	66.9 to 70.9 inches 169 to 180 cm
Rear tread	59.1 to 73.8 inches 150 to 187 cm

Photos

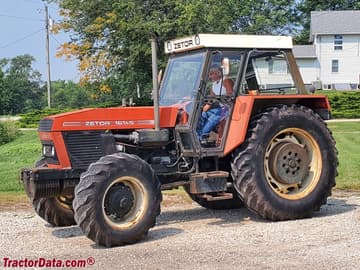

Zetor 16145
