Zetor 3340
The Zetor 3340 is a tractor produced by Zetor. It is equipped with a 164.5 ci 2.7 L engine. The rated power output is 46 hp 34.3 kW. Transmission: mech shuttle. Operating weight: 7,077 lbs 3210 kg.
Engine Power
46 hp
34.3 kW
Fuel & Capacities
12 gal
45.4 L
Transmission
mech shuttle
Operating Weight
7,077 lbs
3210 kg
Zetor 3340 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1993 - 1997
Range 1 SeriesUtility tractor |
|---|---|
1993 - 1997 | |
Range 1 Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Zetor |
Utility tractor | |
Built in Brno, Czech Republic | |
Original price was $19,000 in 1999 | |
Variants | |
|---|---|
3320 | 2WD |
3340 | 4WD |
Zetor 3340 Engine | |
|---|---|
Zetor 2.7L 3-cyl diesel | |
Fuel tank | 12 gal
45.4 L |
Engine details ...  | |
Zetor 3340 Power | |
|---|---|
Engine | 46 hp
34.3 kW |
PTO (claimed) | 43 hp
32.1 kW |
Drawbar (tested) | 37.96 hp
28.3 kW |
PTO (tested) | 42.51 hp
31.7 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Hydraulic dry disc brakes | |
Trailer brakes | pneumatic OptOptional |
hydraulic OptOptional | |
Cab standard, radio optional. | |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2,611 psi
180.0 bar |
Valves | 1 |
Total flow | 8.5 gpm
32.2 lpm |
Steering flow | 4 gpm
15.1 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift | 3850 lbs
1746 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 84.3 inches
214 cm |
Weight | 7,077 lbs
3210 kg |
Front tire | 9.5x24 |
Rear tire | 14.9x28 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 55 |
Battery CCA | 950 |
Battery volts | 12 |
References | |
|---|---|
 | |
3320 - 3340 published by Zetor | |
Range 1 Tractors published by Zetor |
Engine

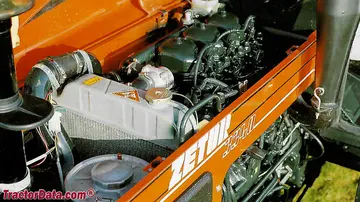

Engine Detail — 164.5 ci / 2.7 L Diesel
Manufacturer | Zetor Z5201 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 164.5 ci
2.7 L |
Bore/Stroke | 4.016x4.331 inches
102 x 110 mm |
Power | 46 hp
34.3 kW |
Air cleaner | oil bath with pre-cleaner |
Compression | 17:1 |
Rated RPM | 2200 |
Starter volts | 12 |
Zetor 3340 Engine | |
|---|---|
 |
Transmission
Transmission options | |
|---|---|
10-speed synchromesh | |
10-speed |
Transmission — 10 forward and 2 reverse synchromesh
Type | synchromesh |
Gears | 10 forward and 2 reverse |
Clutch | hydraulic 304.8mm cerametallic disc |
With 14.9x28 rear tires. | |
 | |
Transmission — mech shuttle
Transmission | mech shuttle |
Gears | 10 forward and reverse |
Dimensions
Zetor 3340 Tires | |
|---|---|
Ag front | 9.5x24 |
Ag rear | 14.9x28 |
Ag front | 11.2x24 |
Ag rear | 12.4x36 |
16.9x28 | |
12.4x32 | |
Dimensions | |
|---|---|
Wheelbase | 84.3 inches
214 cm |
Length | 144.3 inches
366 cm |
Width | 72.8 inches
184 cm |
Height (cab) | 102.2 inches
259 cm |
Height (exhaust) | 103.7 inches
263 cm |
Operating weight | 7,077 lbs
3210 kg |
Ground clearance | 15.2 inches
38 cm |
Tests
Nebraska Tractor Test 1571 | |
|---|---|
Diesel 10-speed 4WD
August 22 - September 5, 1985
Link: Nebraska Tractor Test 1571 file | |
PTO performance | |
Power at rated engine speed | 42.51 hp
31.7 kW |
Fuel use | 2.7 gal/hour
10.2 l/hour |
Power at rated PTO speed | 40.10 hp
29.9 kW |
Drawbar performance | |
Max power | 37.96 hp
28.3 kW |
Fuel use | 2.6 gal/hour
9.8 l/hour |
Gear 3H used for power test. | |
Max pull | 5,955 lbs
2701 kg |
Gear 4L used for pull test. | |
Photos
Zetor 3340
Zetor 3340 cab interior.
