Zetor 3341
The Zetor 3341 is a tractor produced by Zetor. It is equipped with a 164 ci 2.7 L engine. The rated power output is 46 hp 34.3 kW. Transmission: mech shuttle. Operating weight: 6990 lbs 3170 kg.
Overview
 | 1997 - 2005
Range 1 Super SeriesUtility tractor |
|---|---|
1997 - 2005 | |
Range 1 Super Series | |
Utility tractor | |
1997 - 2005 | |
|---|---|
Range 1 Super Series | |
Utility tractor |
Production | |
|---|---|
Manufacturer | Zetor |
Utility tractor | |
Built in Brno, Czech Republic | |
Variants | |
|---|---|
3321 | 2WD |
3341 | 4WD |
Zetor 3341 Engine | |
|---|---|
Zetor 2.7L 3-cyl diesel | |
Fuel tank | 32 gal
121.1 L |
Engine details ...  | |
Zetor 3341 Transmission | |
|---|---|
10-speed | |
Transmission details ...  |
Zetor 3341 Power | |
|---|---|
Engine | 46 hp
34.3 kW |
PTO (claimed) | 43 hp
32.1 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Hydraulic wet disc brakes | |
Two-post folding ROPS. Cab optional with air-conditioning. |
Photos | |
|---|---|
 | |
Zetor 3341 photos...  |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2600 psi
179.3 bar |
Valves | 1 to 3 |
Pump flow | 14 gpm
53.0 lpm |
Steering flow | 4 gpm
15.1 lpm |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Control | position and draft control |
Rear lift | 4300 lbs
1950 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Wheelbase | 73 inches
185 cm |
Weight | 6990 lbs
3170 kg |
Front tire | 9.5-24 |
Rear tire | 16.9-28 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 75 |
Battery volts | 12 |
References | |
|---|---|
 | |
3321 - 3341 published by Zetor | |
Super Series Tractors published by Zetor |
Engine
| 1997 - 2005
Range 1 Super SeriesUtility tractor |
|---|---|
1997 - 2005 | |
Range 1 Super Series | |
Utility tractor | |
1997 - 2005 | |
|---|---|
Range 1 Super Series | |
Utility tractor |
Engine Detail | |
|---|---|
Zetor | |
diesel | |
3-cylinder | |
liquid-cooled | |
Displacement | 164 ci
2.7 L |
Power | 46 hp
34.3 kW |
Rated RPM | 2200 |
Starter volts | 12 |
Transmission
| 1997 - 2005
Range 1 Super SeriesUtility tractor |
|---|---|
1997 - 2005 | |
Range 1 Super Series | |
Utility tractor | |
1997 - 2005 | |
|---|---|
Range 1 Super Series | |
Utility tractor |
Transmission | |
|---|---|
Transmission | collar shift |
Gears | 10 forward and 2 reverse |
Clutch | hydraulic 304.8mm cerametallic disc |
Transmission | |
|---|---|
Transmission | mech shuttle |
Gears | 10 forward and reverse |
Dimensions
| 1997 - 2005
Range 1 Super SeriesUtility tractor |
|---|---|
1997 - 2005 | |
Range 1 Super Series | |
Utility tractor | |
1997 - 2005 | |
|---|---|
Range 1 Super Series | |
Utility tractor |
Zetor 3341 Tires | |
|---|---|
Ag front | 9.5-24 |
Ag rear | 16.9-28 |
Dimensions | |
|---|---|
Wheelbase | 73 inches
185 cm |
Length | 133 inches
337 cm |
Width | 73 inches
185 cm |
Height (cab) | 101 inches
256 cm |
Weight | 6990 lbs
3170 kg |
Ground clearance | 15 inches
38 cm |
Photos

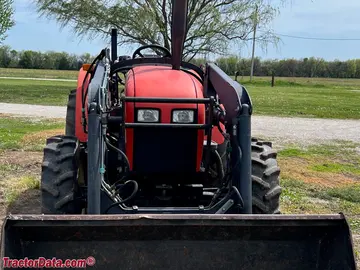

Zetor 3341 tractor with mode 41 front-end loader.
