Zetor 6211

The Zetor 6211 is a tractor produced by Zetor. It is equipped with a 210.9 ci 3.5 L engine. The rated power output is 61 hp 45.5 kW. Transmission: 10 forward and 2 reverse. Operating weight: 6490 lbs 2943 kg.

Overview

	1986 - 1992 Row-Crop tractor
1986 - 1992
Row-Crop tractor

Production
Manufacturer	Zetor
Row-Crop tractor
Built in Brno, Czechoslovakia
Original price was $14,000 in 1992

Variants
6211	2WD
6245	4WD

Zetor 6211 Engine
Zetor 3.5L 4-cyl diesel
Fuel tank	18.5 gal 70.0 L
Engine details ...

Zetor 6211 Transmission
10-speed partially synchronized
Transmission details ...

Zetor 6211 Power
Engine	61 hp 45.5 kW
PTO (claimed)	53 hp 39.5 kW
Drawbar (tested)	46.64 hp 34.8 kW
PTO (tested)	53.09 hp 39.6 kW
Performance test details ...

Mechanical
Two-wheel drive
Differential lock	mechanical rear
Steering	power assist
Hydraulic dry disc brakes
Trailer brakes	hydraulic optional
Cab standard with radio.

Hydraulics
Type	open center
Pressure	2,321 psi 160.0 bar
Valves	2
Total flow	7.9 gpm 29.9 lpm

Tractor hitch
Rear Type	II
Rear lift	5,291 lbs 2399 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)

Dimensions & Tires
Wheelbase	88.5 inches 224 cm
Weight	6490 lbs 2943 kg
Front tire	7.50-16
Rear tire	14-30
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	55
Battery volts	12

References
5211 - 5245 - 6211 - 6245 - 7211 - 7245 published by Zetor
Owner's Instruction Manual 5211, 5245, 6211, 6245, 7211, 7245, 7711 and 7745
6211 - 6245 published by Zetor

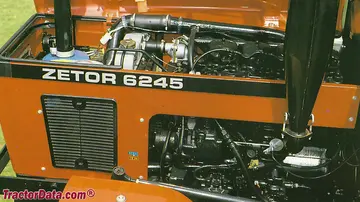

Engine

Engine Detail — 210.9 ci / 3.5 L Diesel

Manufacturer	Zetor 6201
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	210.9 ci 3.5 L
Bore/Stroke	3.937x4.331 inches 100 x 110 mm
Power	61 hp 45.5 kW
Compression	17:1
Rated RPM	2200
Idle RPM	600-2400
Starter	electric
Starter volts	12
Coolant capacity	14.5 qts 13.7 L

Zetor 6211 Engine

Transmission

Transmission — 10 forward and 2 reverse partially synchronized

Type	partially synchronized
Gears	10 forward and 2 reverse
Five gears, plus reverse, in high and low ranges. Fourth and fifth gears are synchronized.
With 14x30 rear tires.

Dimensions

Zetor 6211 Tires
Ag front	7.50-16
Ag rear	14-30
Ag front	6.50-16
	11.5-15.3
Ag rear	11-36
	14-28
	12-36

Dimensions
Wheelbase	88.5 inches 224 cm
Length	149.6 inches 379 cm
Width	72.4 inches 183 cm
Height (cab)	104.3 inches 264 cm
Height (exhaust)	104.7 inches 265 cm
Weight	6490 lbs 2943 kg
Ground clearance	20.3 inches 51 cm

Tests

Nebraska Tractor Test 1601
Diesel 10-speed 4WD September 11 - 30, 1986 Link: Nebraska Tractor Test 1601 file
PTO performance
Power at rated engine speed	53.09 hp 39.6 kW
Fuel use	3.4 gal/hour 12.9 l/hour
Power at rated PTO speed	50.23 hp 37.5 kW
Fuel use	3.1 gal/hour 11.7 l/hour
Drawbar performance
Max power	46.64 hp 34.8 kW
Fuel use	3.4 gal/hour 12.9 l/hour
Gear 2H used for power test.
Max pull	6,332 lbs 2872 kg
Gear 4L used for pull test.

Photos

Zetor 6211
