Zetor 9211
The Zetor 9211 is a tractor produced by Zetor. It is equipped with a 278.4 ci 4.6 L engine. The rated power output is 90 hp 67.1 kW. Transmission: 16 forward and 8 reverse. Operating weight: 8874 lbs 4025 kg.
Engine Power
90 hp
67.1 kW
Fuel & Capacities
33 gal
124.9 L
Transmission
16 forward and 8 reverse
Operating Weight
8874 lbs
4025 kg
Zetor 9211 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1990 - 1997
Row-Crop tractor |
|---|---|
1990 - 1997 | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | Zetor |
Row-Crop tractor | |
Built in Brno, Czechoslovakia | |
Variants | |
|---|---|
9211 | 2WD |
9245 | 4WD |
Zetor 9211 Engine | |
|---|---|
Zetor 4.6L 4-cyl diesel | |
Fuel tank | 33 gal
124.9 L |
Engine details ...  | |
Zetor 9211 Transmission | |
|---|---|
16-speed synchromesh | |
Transmission details ...  |
Zetor 9211 Power | |
|---|---|
Engine | 90 hp
67.1 kW |
PTO (claimed) | 80 hp
59.7 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Hydraulic dry disc brakes | |
Trailer brakes | hydraulic OptOptional |
Cab standard with heater. | |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2730 psi
188.2 bar |
Valves | 2 |
Total flow | 12.4 gpm
46.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift | 7636.6 lbs
3463 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Weight | 8874 lbs
4025 kg |
Front tire | 11.5x15 |
Rear tire | 16.9x38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 55 |
Engine
Engine Detail — 278.4 ci / 4.6 L Diesel
Manufacturer | Zetor Z 8002.13 |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 278.4 ci
4.6 L |
Bore/Stroke | 4.33x4.72 inches
110 x 120 mm |
Power | 90 hp
67.1 kW |
Fuel system | direct injection |
Rated RPM | 2200 |
Starter type | electric |

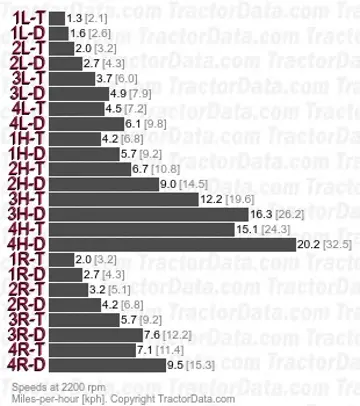

Transmission
Transmission — 16 forward and 8 reverse synchromesh
Type | synchromesh |
Gears | 16 forward and 8 reverse |
Clutch | 350mm hydraulic dry disc |
Four gears (1-4) in two ranges (low/high) plus reverse range, with two-speed torque multiplier. | |
With 16.9x38 rear tires. | |
 | |
Dimensions
Zetor 9211 Tires | |
|---|---|
Standard tires (ag) | Front: 11.5x15. Rear: 16.9x38 |
Dimensions | |
|---|---|
Length | 156.7 inches
398 cm |
Width | 76.8 inches
195 cm |
Height (cab) | 106.7 inches
271 cm |
Height (exhaust) | 111.8 inches
283 cm |
Weight | 8874 lbs
4025 kg |
Ballasted weight | 10483 lbs
4755 kg |
Ground clearance | 16.5 inches
41 cm |
Rear tread | 59.1 to 73.8 inches
150 to 187 cm |
