AGCO LT95A

The AGCO LT95A is a tractor produced by Agco. It is equipped with a 269 ci 4.4 L engine. The listed engine power is Diesel (gross): 115 hp / 85.8 kW. Transmission: Auto-4. Operating weight: 10086 to 11243 pounds.

Engine Power

Diesel (gross): 115 hp / 85.8 kW

Fuel & Capacities

38 gal 143.8 L

Transmission

Auto-4

Operating Weight

10086 to 11243 pounds

Overview

	2008 - 2010 LT-A SeriesUtility tractor LT-A Series Utility tractor

Production
Manufacturer	AGCO
Utility tractor
Built in Beauvais, France
Original price	$45,415 (2009 ROPS 2WD )
	$61,840 (2009 Cab 4WD )

AGCO LT95A Engine
AGCO SisuPower 4.4L 4-cyl diesel
Fuel tank	38 gal 143.8 L
	50 galOptOptional 189.2 L
Engine details ...

AGCO LT95A Transmission
16-speed partial power shift
Transmission details ...

AGCO LT95A Power
Engine (gross)	115 hp 85.8 kW
PTO (claimed)	95 hp 70.8 kW
PTO (tested)	112.32 hp 83.8 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Final drives	inboard planetary
Power steering
Wet disc brakes
Trailer brakes	hydraulic OptOptional
Two-post foldable ROPS. Cab optional with air-conditioning.

Hydraulics
Type	open center
	closed center OptOptional
Pressure	2900 psi 200.0 bar
Valves	2 to 4
Pump flow	26 gpm 98.4 lpm
	15 gpm*Low-flow option. 56.8 lpm
	29 gpm*Closed-center 109.8 lpm

Tractor hitch
Rear Type	II
Control	electronic lower-link draft sensing
Rear lift (at 24"/610mm)	7,817 lbs 3545 kg
	9,187 lbsOptOptional 4167 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro hydraulic
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	105 inches 266 cm
Weight	10086 to 11243 pounds
Front tire	9.5L-15
2WD Rear tire	18.4R30
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
ROPS Charging amps	80
Ccab Charging amps	120
Battery volts	12

Engine

Engine Detail — 269 ci / 4.4 L Diesel

Manufacturer	AGCO SisuPower 44CTA
Configuration	turbocharged intercooled diesel, 4-cylinder 16-valve, liquid-cooled
Displacement	269 ci 4.4 L
Bore/Stroke	4.252x4.724 inches 108 x 120 mm
Emissions	Tier III
Power (gross)	115 hp 85.8 kW
Fuel system	high pressure common rail
Cooling system	viscous fan drive
Pre-heating	grid heater
Compression	18.5:1
Rated RPM	2200
Starter	electric
Starter volts	12

Transmission

Transmission — Auto-4

Transmission	Auto-4
Type	partial power shift
Gears	16 forward and reverse
Clutch	electro-hydraulic wet disc
Four power shift gears in four ranges with power shuttle.

Dimensions

AGCO LT95A Tires
2WD Standard tires (ag)	Front: 9.5L-15. Rear: 18.4R30
4WD Standard tires (ag)	Front: 13.6R24. Rear: 18.4R30
2WD Optional tires (ag)	Front: 10.00-16. Rear: 18.4R30
2WD Optional tires (ag)	Front: 9.5L-15. Rear: 16.9R34
2WD Optional tires (ag)	Front: 10.00-16. Rear: 16.9R34
2WD Optional tires (ag)	Front: 10.00-16. Rear: 18.4R34
2WD Optional tires (ag)	Front: 11.00-16. Rear: 18.4R34
2WD Optional tires (ag)	Front: 11.00-16. Rear: 16.9R38
2WD Optional tires (ag)	Front: 11.00-16. Rear: 18.4R38
4WD Optional tires (ag)	Front: 13.6R24. Rear: 16.9R34
4WD Optional tires (ag)	Front: 14.9R24. Rear: 18.4R34
4WD Optional tires (ag)	Front: 13.6R28. Rear: 16.9R38
4WD Optional tires (ag)	Front: 14.9R28. Rear: 18.4R38

Dimensions
Wheelbase	105 inches 266 cm
Length	172 inches 436 cm
Width	79.3 inches 201 cm
Height (ROPS)	62.5 inches (folded) 158 cm
Height (cab)	109 inches 276 cm
Flange rear axle
Front tread	61 to 76 inches 154 to 193 cm (2WD)
Front tread	61 to 85 inches 154 to 215 cm (4WD)
Rear tread	60 to 84 inches 152 to 213 cm

AGCO LT95A Weight
2WD ROPS	10,086 lbs 4575 kg
4WD ROPS	10,736 lbs 4869 kg
2WD Cab	10,593 lbs 4804 kg
4WD Cab	11,243 lbs 5099 kg

Tests

Nebraska Tractor Test 1932
Diesel 16-speed 4WD June 11 - 24, 2008 Link: Nebraska Tractor Test 1932 file
PTO performance
Max power	112.32 hp 83.8 kW
Fuel use	6.7 gal/hour 25.4 l/hour
Power at rated engine speed	99.23 hp 74.0 kW
Fuel use	6.7 gal/hour 25.4 l/hour
Power at rated PTO speed	111.60 hp 83.2 kW
Fuel use	6.6 gal/hour 25.0 l/hour

Attachments

Attachment overview
AGCO FL40A loader
AGCO FL45A loader
AGCO FL400A loader

Photos

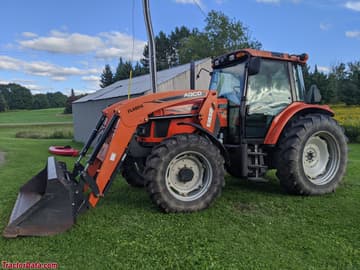

2008 AGCO LT95A tractor with FL400A front-end loader.

Recommended Implements & Sizing Guide

Engineering recommendations for Agco LT95A based on its 115 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Agco LT95A.

Estimated Continuous Field Runtime: 6.4 hrs

Approximately 6.4 hours of continuous field operation at ~75% rated power on a full tank (38 gal / 143.8 L).

Estimated 75% Load Fuel Burn~6 gal/hr (22.6 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Agco LT95A Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Agco LT95A.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)115 hp

Kilowatts (kW)85.8 kW

Metric Horsepower (PS / CV)116.6 PS
