AGCO RT100A
The AGCO RT100A is a tractor produced by Agco. It is equipped with a 402 ci 6.6 L engine. The listed engine power is Diesel (listed): 128 hp / 95.4 kW. Transmission: QuadraShift. Operating weight: 15,100 lbs 6849 kg.
Engine Power
Diesel (listed): 128 hp / 95.4 kW
Fuel & Capacities
70 gal
264.9 L
Transmission
QuadraShift
Operating Weight
15,100 lbs
6849 kg
Overview
 | 2006 - 2007
RT-A SeriesRow-Crop tractor
RT-A Series
Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | AGCO |
Row-Crop tractor | |
Built in Beauvais, France | |
AGCO RT100A Engine | |
|---|---|
Sisu 6.6L 6-cyl diesel | |
Fuel tank | 70 gal
264.9 L |
Engine details ...  | |
AGCO RT100A Power | |
|---|---|
Engine | 128 hp
95.4 kW |
PTO (claimed) | 100 hp
74.6 kW |
Drawbar (tested) | 89.72 hp
66.9 kW |
PTO (tested) | 117.73 hp
87.8 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Steering | hydrostatic power |
Hydraulic wet disc brakes | |
Cab standard. | |
Hydraulics | |
|---|---|
Type | closed center PFC |
Valves | 3 or 4 |
Pump flow | 29 gpm
109.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | II, IIIN |
Rear lift | 8,500 lbs
3855 kg |
10,500 lbs
4762 kg | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 109.5 inches
278 cm |
Weight | 15,100 lbs
6849 kg |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 120 |
Batteries | 2 |
Battery volts | 12 |
Engine
Engine Detail — 402 ci / 6.6 L Diesel
Manufacturer | Sisu |
Configuration | intercooled turbocharged diesel, 6-cylinder, liquid-cooled |
Displacement | 402 ci
6.6 L |
Bore/Stroke | 4.252x4.724 inches
108 x 120 mm |
Power | 128 hp
95.4 kW |
Air cleaner | dual paper elements |
Compression | 18.5:1 |
Rated RPM | 2200 |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
continuously variable transmission | |
32-speed partial power shift |
Transmission — PowerMaxx CVT
Transmission | PowerMaxx CVT |
Type | continuously variable transmission |
Gears | infinite forward and reverse |
 | |
Transmission — QuadraShift
Transmission | QuadraShift |
Type | partial power shift |
Gears | 32 forward and reverse |
Dimensions
AGCO RT100A Tires |
|---|
Dimensions | |
|---|---|
Wheelbase | 109.5 inches
278 cm |
Operating weight | 15,100 lbs
6849 kg |
Front tread | 61.2 to 89.1 inches
155 to 226 cm |
Rear tread | 63.5 to 110.4 inches
161 to 280 cm |
Tests
OCED Tractor Test 569 | |
|---|---|
Diesel CVT 4WD
May 30 - June 1, 2007
Link: OCED Tractor Test 569 file | |
PTO performance | |
Max power | 117.73 hp
87.8 kW |
Fuel use | 6.7 gal/hour
25.4 l/hour |
Power at rated engine speed | 107.77 hp
80.4 kW |
Fuel use | 7.1 gal/hour
26.9 l/hour |
Power at rated PTO speed | 116.14 hp
86.6 kW |
Fuel use | 6.9 gal/hour
26.1 l/hour |
Drawbar performance | |
Max power | 89.72 hp
66.9 kW |
Fuel use | 7.1 gal/hour
26.9 l/hour |
Pull at 6.71 KPH | |
Max pull | 15,145 lbs
6869 kg |
Pull at 2.91 KPH | |
Photos

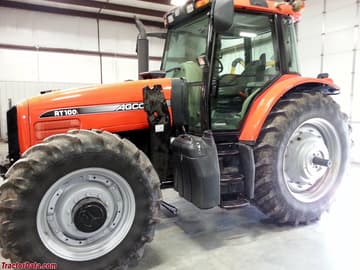

AGCO RT100A
Recommended Implements & Sizing Guide
Engineering recommendations for Agco RT100A based on its 128 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙 | Commercial / Field Scale | Wide commercial field leveling; requires hydraulic remotes. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Agco RT100A.
Estimated Continuous Field Runtime: 10.5 hrs
Approximately 10.5 hours of continuous field operation at ~75% rated power on a full tank (70 gal / 265 L).
Estimated 75% Load Fuel Burn~6.7 gal/hr (25.2 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Agco RT100A Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Agco RT100A.
Converted Equivalents:
Horsepower (HP)128 hp
Kilowatts (kW)95.4 kW
Metric Horsepower (PS / CV)129.8 PS
Direct Competitor Comparison
Compare AGCO RT100A against same-era industry alternatives in the same horsepower class.
Current Model
Agco
AGCO RT100A
Engine Power:Diesel (listed): 128 hp / 95.4 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester Hydro 186
Engine Power:115.6
Production Years:1976 - 1981
