AGCO LT90A
The AGCO LT90A is a tractor produced by Agco. It is equipped with a 268.3 ci 4.4 L engine. The listed engine power is Diesel (listed): 110 hp / 82.0 kW. Transmission: 16 forward and reverse. Operating weight: 8820 to 9940 pounds.
Engine Power
Diesel (listed): 110 hp / 82.0 kW
Fuel & Capacities
34.3 gal
129.8 L
Transmission
16 forward and reverse
Operating Weight
8820 to 9940 pounds
Overview
 | 2006 - 2008
LT-A SeriesUtility tractor
LT-A Series
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | AGCO |
Utility tractor | |
Built in Beauvais, France | |
AGCO LT90A Engine | |
|---|---|
Sisu 4.4L 4-cyl diesel | |
Fuel tank | 34.3 gal
129.8 L |
49.3 gal*Total capacity with optional tank.
186.6 L | |
Engine details ...  | |
AGCO LT90A Transmission | |
|---|---|
16-speed full power shift | |
Transmission details ...  |
AGCO LT90A Power | |
|---|---|
Engine | 110 hp
82.0 kW |
PTO (claimed) | 90 hp
67.1 kW |
PTO (tested) | 93.74 hp
69.9 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Final drives | inboard planetary |
Power steering | |
Wet disc brakes | |
Two-post folding ROPS. Cab optional. | |
Hydraulics | |
|---|---|
Type | open center |
closed center OptOptional | |
Valves | 2 to 4 |
Total flow | 26 gpm
98.4 lpm |
29 gpmOptOptional
109.8 lpm | |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift (at 24"/610mm) | 7817 lbs
3545 kg |
9189 lbsOptOptional
4168 kg | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 540@1980 |
1000E@1550 | |
1000@2000 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 107.5 inches
273 cm |
Weight | 8820 to 9940 pounds |
Front tire | 14.9R24 |
Rear tire | 18.4R34 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
LT Series published in 2004, by AGCO |
Engine
Engine Detail — 268.3 ci / 4.4 L Diesel
Manufacturer | Sisu |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 268.3 ci
4.4 L |
Bore/Stroke | 4.252x4.724 inches
108 x 120 mm |
Power | 110 hp
82.0 kW |
Air cleaner | paper element with water separator |
Compression | 18.5:1 |
Rated RPM | 2200 |
Starter volts | 12 |
Transmission
Transmission — 16 forward and reverse full power shift
Type | full power shift |
Gears | 16 forward and reverse |
Clutch | electro-hydraulic wet disc |
 | |
Dimensions
AGCO LT90A Tires | |
|---|---|
Ag front | 14.9R24 |
Ag rear | 18.4R34 |
Dimensions | |
|---|---|
Wheelbase | 107.5 inches
273 cm |
Length | 165.5 inches
420 cm |
Height (Folded ROPS) | 62.5 inches
158 cm |
Height (cab) | 110 inches
279 cm |
2WD ROPS Weight | 8820 lbs
4000 kg |
4WD Cab Weight | 9940 lbs
4508 kg |
Tests
Nebraska Tractor Test 1902 | |
|---|---|
Diesel 16 speed 4WD
May 24 - 30, 2007
Link: Nebraska Tractor Test 1902 file | |
PTO performance | |
Max power | 93.74 hp
69.9 kW |
Fuel use | 5.4 gal/hour
20.4 l/hour |
Power at rated engine speed | 91.75 hp
68.4 kW |
Fuel use | 5.8 gal/hour
22.0 l/hour |
Power at rated PTO speed | 93.74 hp
69.9 kW |
Fuel use | 5.4 gal/hour
20.4 l/hour |
Photos

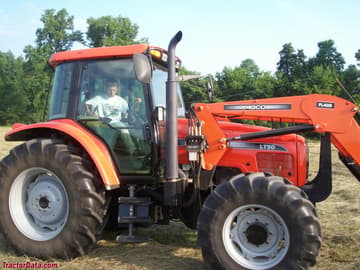

AGCO LT90A with FL400 front-end loader.
Front view of the AGCO LT90a.
Recommended Implements & Sizing Guide
Engineering recommendations for Agco LT90A based on its 110 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Agco LT90A.
Estimated Continuous Field Runtime: 6 hrs
Approximately 6 hours of continuous field operation at ~75% rated power on a full tank (34.3 gal / 129.8 L).
Estimated 75% Load Fuel Burn~5.7 gal/hr (21.7 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Agco LT90A Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Agco LT90A.
Converted Equivalents:
Horsepower (HP)110 hp
Kilowatts (kW)82 kW
Metric Horsepower (PS / CV)111.5 PS
