AGCO RT120A

The AGCO RT120A is a tractor produced by Agco. It is equipped with a 402.5 ci 6.6 L engine. The listed engine power is Diesel (listed): 145 hp / 108.1 kW. Transmission: PowerMaxx CVT. Operating weight: 13300 to 15100 pounds.

Engine Power
Diesel (listed): 145 hp / 108.1 kW
Fuel & Capacities
100 gal 378.5 L
Transmission
PowerMaxx CVT
Operating Weight
13300 to 15100 pounds

Overview

AGCO RT120A tractor photo
2006 - 2011 RT-A SeriesRow-Crop tractor RT-A Series Row-Crop tractor
Production
Manufacturer
AGCO
Row-Crop tractor
Built in Beauvais, France
Original price
$81,782 (2009 Auto-6 2WD )
$91,009 (2009 Auto-6 4WD )
$98,005 (2009 CVT 4WD )
AGCO RT120A Engine
SisuDiesel 6.6L 6-cyl diesel
Fuel tank
100 gal 378.5 L
Engine details ...
AGCO RT120A Power
Engine
145 hp 108.1 kW
PTO (claimed)
120 hp 89.5 kW
Drawbar (tested)
101.24 hp 75.5 kW
PTO (tested)
147.2 hp 109.8 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Differential lock
front and rear
Power steering
Hydraulic wet disc brakes
Cab standard. Optional Airmaxx pneumatic cab suspension and automatic climate control.
Hydraulics
Type
closed center pressure flow compensated (PFC)
Pressure
2900 psi 200.0 bar
Valves
2 to 4
Total flow
29 gpm 109.8 lpm
Tractor hitch
Rear Type
2
Control
electronic position and draft control
Rear lift (at 24"/610mm)
9,391 lbs 4259 kg
CVT Rear lift (at 24"/610mm)
10,500 lbs 4762 kg
Front Hitch
optional
Front lift
8,800 lbs 3991 kg
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540/540E/1000/1000E
Front PTO
optional
Front PTO Type
1000
Dimensions & Tires
2WD Wheelbase
115.3 inches 292 cm
4WD Wheelbase
113.7 inches 288 cm
Weight
13300 to 15100 pounds
Front tire
10.00x16
Rear tire
18.4R42 (2WD)
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Charging amps
120
150 OptOptional
Batteries
2
Battery CCA
550
Battery volts
12

Engine

Engine Detail — 402.5 ci / 6.6 L Diesel

Manufacturer
SisuDiesel 66CTA
Configuration
turbocharged intercooled diesel, 6-cylinder 24-valve, liquid-cooled
Displacement
402.5 ci 6.6 L
Bore/Stroke
4.252x4.724 inches 108 x 120 mm
Emissions
Tier III
Power
145 hp 108.1 kW
Maximum Power
170 hp 126.8 kW
Fuel system
electronic common rail fuel injection
Air cleaner
dry cartridge
Pre-heating
grid heater
Compression
18.5:1
Rated RPM
2200
Starter volts
12

Transmission

Transmission options
24-speed partial power shift
continuously variable transmission

Transmission — Auto-6

Transmission
Auto-6
Type
partial power shift
Gears
24 forward and reverse
Clutch
wet disc
Six power shift gears in four synchromesh ranges. Autodrive provides automatic shifting to match load.

Transmission — PowerMaxx CVT

Transmission
PowerMaxx CVT
Type
continuously variable transmission
Gears
infinite forward and reverse (two-range)
Combination hydrostatic-mechanical CVT transmission. With the suspended front axle a transport speed of 50 KPH is available. Creeper speed available down to 0.03 KPH.
RT120A PowerMaxx CVT continuously variable transmission speeds

Dimensions

AGCO RT120A Tires
Standard tires (ag)
Front: 10.00x16. Rear: 18.4R42 (2WD)
Front: 14.9R30. Rear: 18.4R42 (4WD)
Dimensions
2WD Wheelbase
115.3 inches 292 cm
4WD Wheelbase
113.7 inches 288 cm
2WD Length
182.9 inches 464 cm
4WD Length
171 inches 434 cm
2WD Width
60.7 inches 154 cm
4WD Width
78.4 inches 199 cm
2WD Height (cab)
142.3 inches 361 cm
4WD Height (cab)
114.4 inches 290 cm
Bar rear axle
3.23 by 87.7 inches 82 by 2227 mm
Bar rear axle
3.23 by 113 inches 82 by 2870 mm
CVT 95 by 2468 mm Bar rear axle
3.75 by 97.2 inches
CVT 95 by 2999 mm Rear axle
3.75 by 118.1 inches
2WD Front tread
64.1 to 79.9 inches 162 to 202 cm
4WD Front tread
64.1 to 79.9 inches 162 to 202 cm
Rear tread
66.6 to 115 inches 169 to 292 cm
AGCO RT120A Weight
4WD Shipping
13,300 lbs 6032 kg
CVT Shipping
15,100 lbs 6849 kg
4WD Operating
14,725 lbs 6679 kg
CVT Operating
15,100 lbs 6849 kg

Tests

Tractor Tests
OECD 1904: diesel CVT 4WD
OECD 2412: diesel 24-speed 4WD
OCED Tractor Test 1904
Diesel CVT 4WD May 23 - 29, 2007 Link: OCED Tractor Test 1904 file
PTO performance
Max power
130.20 hp 97.1 kW
Fuel use
7.2 gal/hour 27.3 l/hour
Power at rated engine speed
122.71 hp 91.5 kW
Fuel use
7.9 gal/hour 29.9 l/hour
Power at rated PTO speed
127.62 hp 95.2 kW
Fuel use
7.5 gal/hour 28.4 l/hour
Drawbar performance
Max power
101.24 hp 75.5 kW
Fuel use
7.8 gal/hour 29.5 l/hour
Pull at 7.75 KPH
Max pull
15,050 lbs 6826 kg
Pull at 3.65 KPH
OCED Tractor Test 2412
Diesel 24-speed 4WD November 2007 - January 2008, Link: OCED Tractor Test 2412 file
PTO performance
Max power
147.2 hp 109.8 kW
Fuel use
8.1 gal/hour 30.7 l/hour
Power at rated engine speed
127.8 hp 95.3 kW
Fuel use
7.9 gal/hour 29.9 l/hour
Power at rated PTO speed
143.9 hp 107.3 kW
Fuel use
8.2 gal/hour 31.0 l/hour
Drawbar performance
Max power
97.1 hp 72.4 kW
Fuel use
6.8 gal/hour 25.7 l/hour
Gear 3A used for power test.
Max pull
13,265 lbs 6017 kg
Gear 1D used for pull test.

Photos

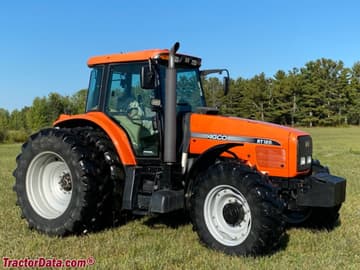

AGCO RT120A

AGCO RT120A

AGCO RT120A

AGCO RT120A

AGCO RT120A

AGCO RT120A

AGCO RT120A cab interior.

AGCO RT120A cab interior.

Recommended Implements & Sizing Guide

Engineering recommendations for Agco RT120A based on its 145 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
5 to 7 Bottom (18")5 - 7 铧 (45 cm)Commercial / Field ScaleLarge acreage tillage; requires front ballast weights.
Rotary Cutter / MowerMowing & Clearing
10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼Heavy DutyWide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep
90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机Commercial / Field ScaleDeep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage
15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙Commercial / Field ScaleWide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage
5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机Heavy DutyHigh density baling; requires minimum 85 PTO HP.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Agco RT120A.

Estimated Continuous Field Runtime: 13.3 hrs

Approximately 13.3 hours of continuous field operation at ~75% rated power on a full tank (100 gal / 378.5 L).

Estimated 75% Load Fuel Burn~7.5 gal/hr (28.5 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Agco RT120A Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Agco RT120A.

Converted Equivalents:

Horsepower (HP)145 hp
Kilowatts (kW)108.1 kW
Metric Horsepower (PS / CV)147 PS
