AGCO RT110A
The AGCO RT110A is a tractor produced by Agco. It is equipped with a 402.5 ci 6.6 L engine. The listed engine power is Diesel (listed): 135 hp / 100.7 kW. Transmission: PowerMaxx CVT. Operating weight: 12200 to 15100 pounds.
Engine Power
Diesel (listed): 135 hp / 100.7 kW
Fuel & Capacities
100 gal
378.5 L
Transmission
PowerMaxx CVT
Operating Weight
12200 to 15100 pounds
Overview
 | 2007 - 2011
RT-A SeriesRow-Crop tractor
RT-A Series
Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | AGCO |
Row-Crop tractor | |
Built in Beauvais, France | |
Original price | $75,354 (2009 Auto-6 2WD ) |
$84,579 (2009 Auto-6 4WD ) | |
$91,509 ( CVT 4WD ) | |
AGCO RT110A Engine | |
|---|---|
SisuDiesel 6.6L 6-cyl diesel | |
Fuel tank | 100 gal
378.5 L |
Engine details ...  | |
AGCO RT110A Power | |
|---|---|
Engine | 135 hp
100.7 kW |
PTO (claimed) | 110 hp
82.0 kW |
Drawbar (tested) | 89.3 hp
66.6 kW |
PTO (tested) | 141.3 hp
105.4 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Differential lock | front and rear |
Power steering | |
Hydraulic wet disc brakes | |
Cab standard. Optional Airmaxx pneumatic cab suspension and automatic climate control. | |
Hydraulics | |
|---|---|
Type | closed center pressure flow compensated (PFC) |
Pressure | 2900 psi
200.0 bar |
Valves | 2 to 4 |
Total flow | 29 gpm
109.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | 2 |
Control | electronic position and draft control |
Rear lift (at 24"/610mm) | 9,391 lbs
4259 kg |
CVT Rear lift (at 24"/610mm) | 10,500 lbs
4762 kg |
Front Hitch | optional |
Front lift | 8,800 lbs
3991 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/540E/1000/1000E |
Front PTO | optional |
Front PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 115.3 inches
292 cm |
4WD Wheelbase | 113.7 inches
288 cm |
Weight | 12200 to 15100 pounds |
Front tire | 10.00x16 |
Rear tire | 18.4R42 (2WD) |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 120 |
150 OptOptional | |
Batteries | 2 |
Battery CCA | 550 |
Battery volts | 12 |
Engine
Engine Detail — 402.5 ci / 6.6 L Diesel
Manufacturer | SisuDiesel 66CTA |
Configuration | turbocharged intercooled diesel, 6-cylinder 24-valve, liquid-cooled |
Displacement | 402.5 ci
6.6 L |
Emissions | Tier III |
Power | 135 hp
100.7 kW |
Maximum Power | 160 hp
119.3 kW |
Fuel system | electronic common rail fuel injection |
Air cleaner | dry cartridge |
Pre-heating | grid heater |
Rated RPM | 2200 |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
24-speed partial power shift | |
continuously variable transmission |
Transmission — Auto-6
Transmission | Auto-6 |
Type | partial power shift |
Gears | 24 forward and reverse |
Clutch | wet disc |
Six power shift gears in four synchromesh ranges. Autodrive provides automatic shifting to match load. | |
Transmission — PowerMaxx CVT
Transmission | PowerMaxx CVT |
Type | continuously variable transmission |
Gears | infinite forward and reverse (two-range) |
Combination hydrostatic-mechanical CVT transmission. With the suspended front axle a transport speed of 50 KPH is available. Creeper speed available down to 0.03 KPH. | |
 | |
Dimensions
AGCO RT110A Tires | |
|---|---|
Standard tires (ag) | Front: 10.00x16. Rear: 18.4R42 (2WD) |
Front: 14.9R30. Rear: 18.4R42 (4WD) | |
Dimensions | |
|---|---|
2WD Wheelbase | 115.3 inches
292 cm |
4WD Wheelbase | 113.7 inches
288 cm |
2WD Length | 182.9 inches
464 cm |
4WD Length | 171 inches
434 cm |
2WD Width | 60.7 inches
154 cm |
4WD Width | 78.4 inches
199 cm |
2WD Height (cab) | 142.3 inches
361 cm |
4WD Height (cab) | 114.4 inches
290 cm |
4WD Shipping weight | 12,200 lbs
5533 kg |
CVT Shipping weight | 15,100 lbs
6849 kg |
Flange rear axle | |
Bar rear axle | 3.23 by 87.7 inches
82 by 2227 mm |
Bar rear axle | 3.23 by 113 inches
82 by 2870 mm |
CVT
94 by 2468 mm Bar rear axle | 3.74 by 97.2 inches |
CVT
958 by 2999 mm Bar rear axle | 37.74 by 118.1 inches |
2WD Front tread | 64.1 to 79.9 inches
162 to 202 cm |
4WD Front tread | 64.1 to 79.9 inches
162 to 202 cm |
Rear tread | 61.6 to 80.5 inches
156 to 204 cm |
Tests
OCED Tractor Test 2411 | |
|---|---|
Diesel 24-speed 4WD
November 2007 - January 2008,
Link: OCED Tractor Test 2411 file | |
PTO performance | |
Max power | 141.3 hp
105.4 kW |
Fuel use | 7.8 gal/hour
29.5 l/hour |
Power at rated engine speed | 116.9 hp
87.2 kW |
Fuel use | 7.6 gal/hour
28.8 l/hour |
Power at rated PTO speed | 137.5 hp
102.5 kW |
Fuel use | 7.9 gal/hour
29.9 l/hour |
Drawbar performance | |
Max power | 89.3 hp
66.6 kW |
Fuel use | 6.8 gal/hour
25.7 l/hour |
Gear 3A used for power test. | |
Max pull | 12,680 lbs
5751 kg |
Gear 1C used for pull test. | |
Attachments
Attachment overview | |
|---|---|
AGCO FL65 loader | |
AGCO FL60 loader |
Photos

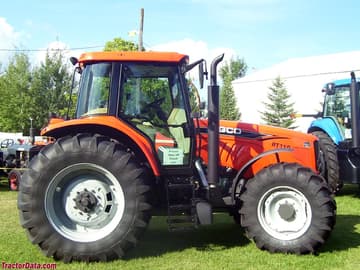

AGCO RT110A
Recommended Implements & Sizing Guide
Engineering recommendations for Agco RT110A based on its 135 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙 | Commercial / Field Scale | Wide commercial field leveling; requires hydraulic remotes. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Agco RT110A.
Estimated Continuous Field Runtime: 14.2 hrs
Approximately 14.2 hours of continuous field operation at ~75% rated power on a full tank (100 gal / 378.5 L).
Estimated 75% Load Fuel Burn~7 gal/hr (26.6 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Agco RT110A Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Agco RT110A.
Converted Equivalents:
Horsepower (HP)135 hp
Kilowatts (kW)100.7 kW
Metric Horsepower (PS / CV)136.9 PS
